Installation Position

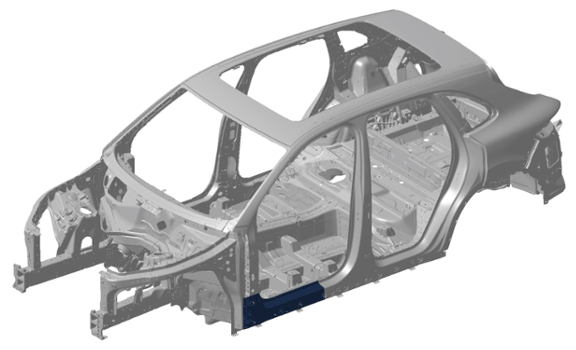

Fig 1: Outer Side Member (Front Section) Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

Information

Cuts can be made in defined areas in the outer side member due to the parts dimensions. The purpose of the different cuts is to keep the repair area as small as possible in the event of damage.

The diagram should help you to determine the correct position of cuts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

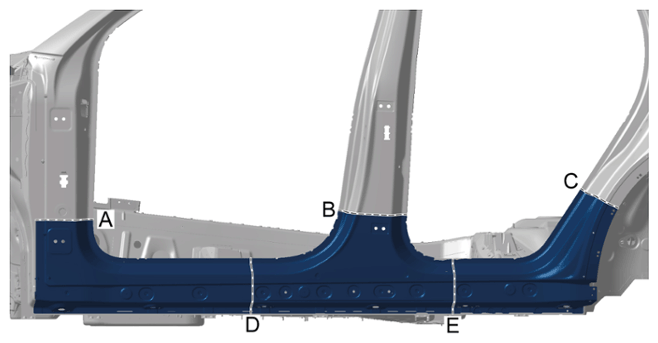

Possible separation points on outer side member

A-B-C	Replace cuts for outer side member > 514555 REPLACING OUTER SIDE MEMBER
A-D	Replace cuts for centre side member > 51455503 REPLACING OUTER SIDE MEMBER (FRONT SECTION)
B-D-E	Replace cuts for B-pillar reinforcement > 514255 REPLACING B-PILLAR REINFORCEMENT
D-E	Replace cuts for B-pillar > 514155 REPLACING B-PILLAR
C-E	Replace cuts for rear side member > 51455505 REPLACING OUTER SIDE MEMBER (REAR SECTION)
