Possible Separation Points

Information

Cuts can be made in defined areas in the outer side member due to the parts dimensions. The purpose of the different cuts is to keep the repair area as small as possible in the event of damage.

The diagram should help you to determine the correct position of cuts.

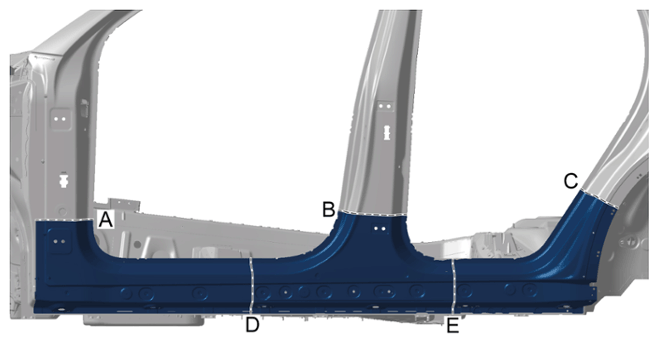

G16138642Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Possible separation points on outer side member

A-B-C  Replace cuts for outer side member
> 514555 REPLACING OUTER SIDE MEMBER
A-D  Replace cuts for centre side member
> 51455503 REPLACING OUTER SIDE MEMBER (FRONT SECTION)
B-D-E  Replace cuts for B-pillar reinforcement
> 514255 REPLACING B-PILLAR REINFORCEMENT
D-E  Replace cuts for B-pillar
> 514155 REPLACING B-PILLAR
C-E  Replace cuts for rear side member
> 51455505 REPLACING OUTER SIDE MEMBER (REAR SECTION)

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

Mark cuts to match the new part. Make sure to leave an overlap of approx. 30 mm with respect to the body.

  1. Mark and make cuts -A and B-  . > Distance 205 mm  > Distance 62 mm

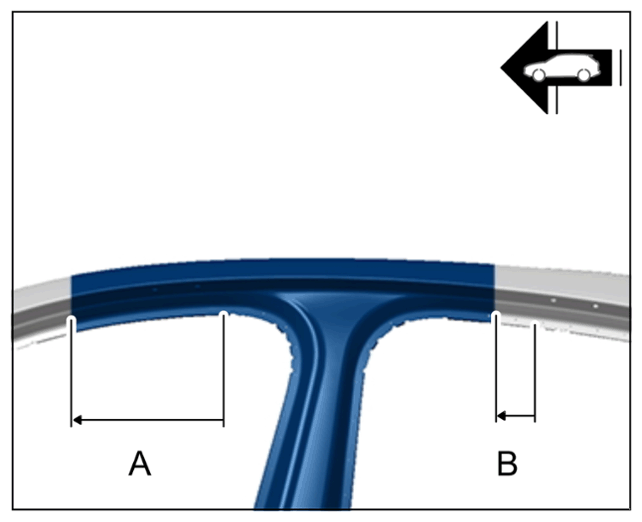

    G16138643Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cuts A and B

    Information

    Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

    Information

    Mark cuts to match the new part. Make sure to leave an overlap of approx. 30 mm with respect to the body.

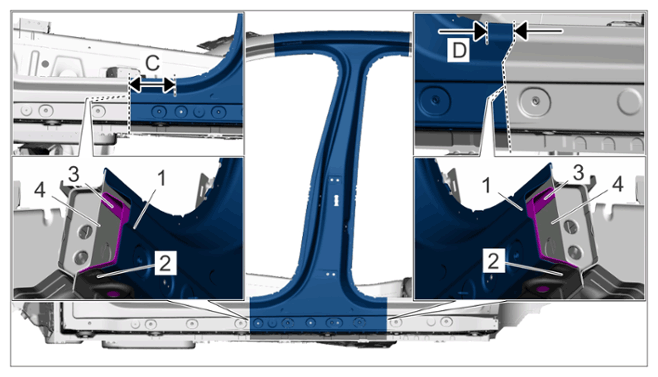

  2. Mark and make cuts -C and D-  . > Distance 73 mm  > Distance 66 mm
    G16138644Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cuts C and D

    1. 2.1  Cut through side member plates -1-  and -2-  . Do not damage side member reinforcement -3 and 4-  .
  3. Disconnect connection points.

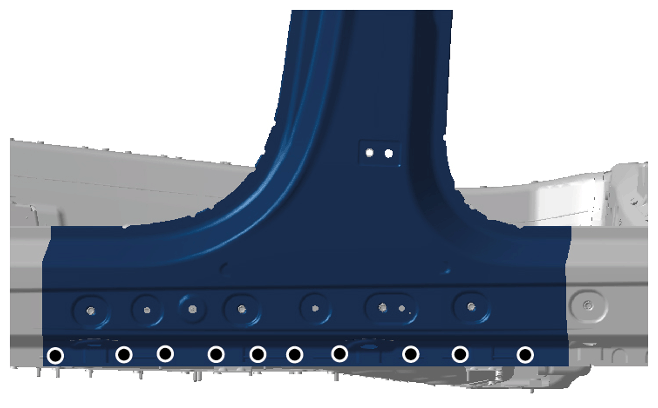

    1. 3.1  Drill out spot welds. > Spot welds
      G16138645Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Spot welds

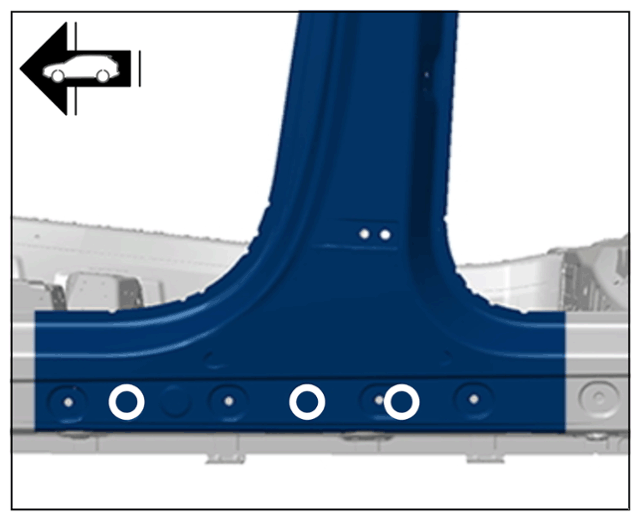

    2. 3.2  Drill out blind rivets. > Blind rivets
      G16138646Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Bund rivets

    3. 3.3  Remove punch rivets in area using > VAS 852 001 - dent removal unit, aluminium  and > VAS 6790 - Compact Booster  . > Punch rivets

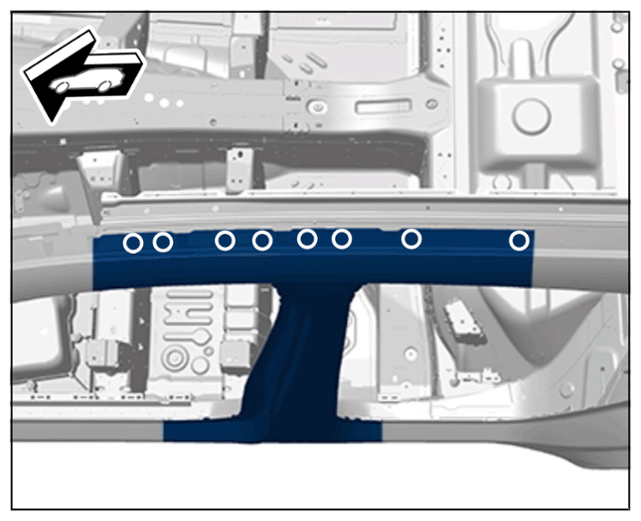

      G16138647Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Punch rivets

      > 5X00IN23 REPLACE PUNCH RIVETS AND PENETRATED POINTS

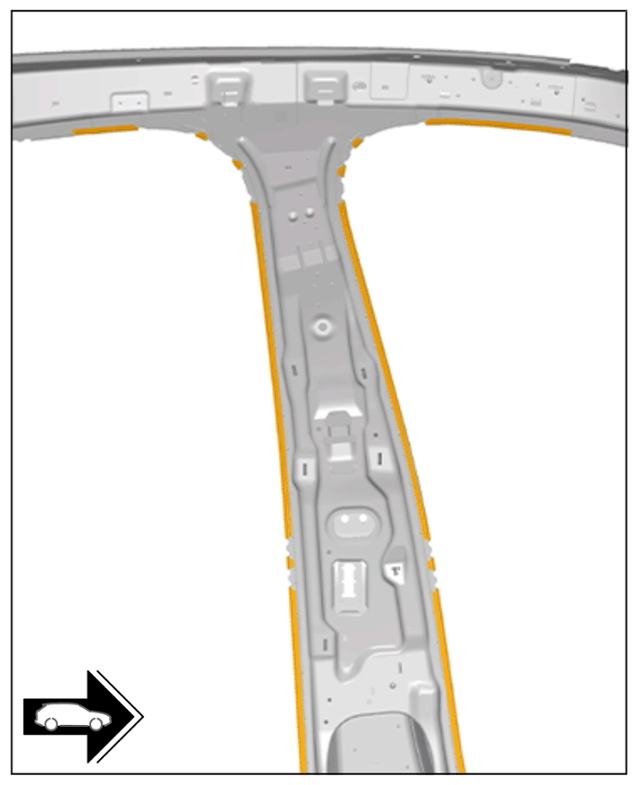

  4. Bend up edges in the front door aperture > Edges in door aperture, top.
    G16138648Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Edges in door aperture, top

    1. 4.1  Heat bonding areas > Edges in door aperture, top  using > V.A.G 1416 - hot-air blower  .
    2. 4.2  Bend up edges in the front door aperture > Edges in door aperture, top  using > VAS 6635 - crimping pliers set, 4-piece  .

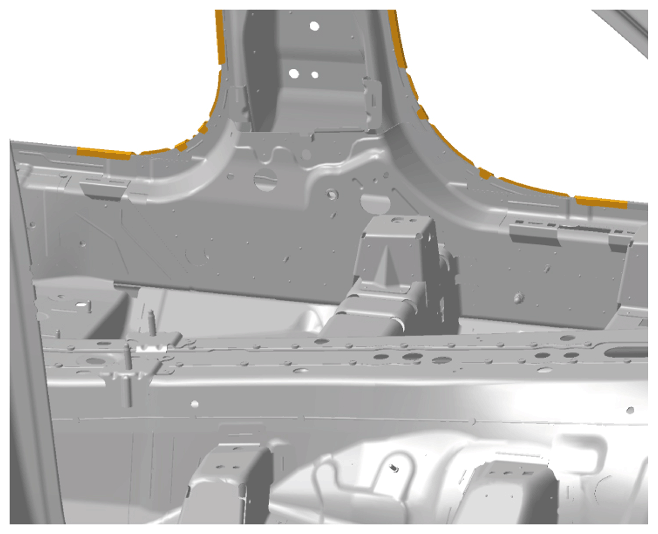

  5. Bend up edges in the front door aperture > Edges in door aperture, bottom.
    G16138649Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Edges in door aperture, bottom

    1. 5.1  Heat bonding areas > Edges in door aperture, bottom using > V.A.G 1416 - hot-air blower  .
    2. 5.2  Bend up edges in the front door aperture > Edges in door aperture, bottom using > VAS 6635 - crimping pliers set, 4-piece  .
  6. Remove B-pillar > Bonding areas  .

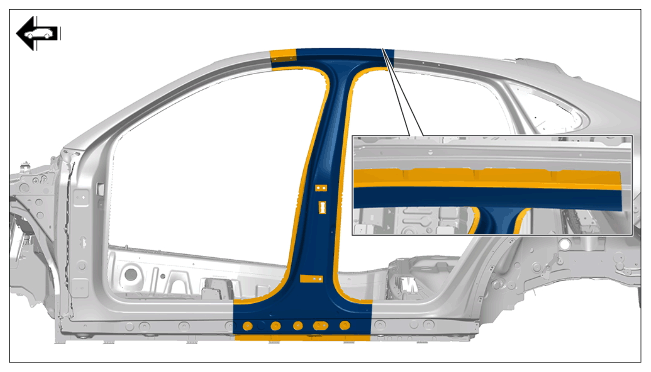

    G16138650Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

    1. 6.1  Heat bonding areas > Bonding areas using > V.A.G 1416 - hot-air blower  .
    2. 6.2  Remove B-pillar > Bonding areas  .

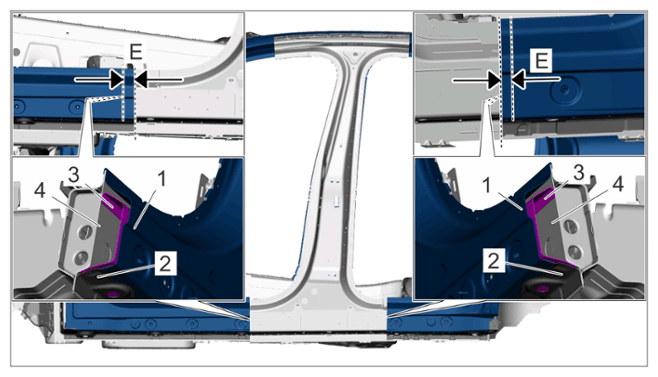

  7. Mark and make cuts -Dimension E-  . > Distance approx. 20 mm
    G16138651Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Stepping cuts

    1. 7.1  Cut only side member plate -1-  . Do not damage side member plate -2-  or side member reinforcement -3 and 4-  .
