Preparing Connection Areas Of Body For Installing B-Pillar

Align contact surfaces and connections of the body.
Deburr connection points and prepare them for joining.

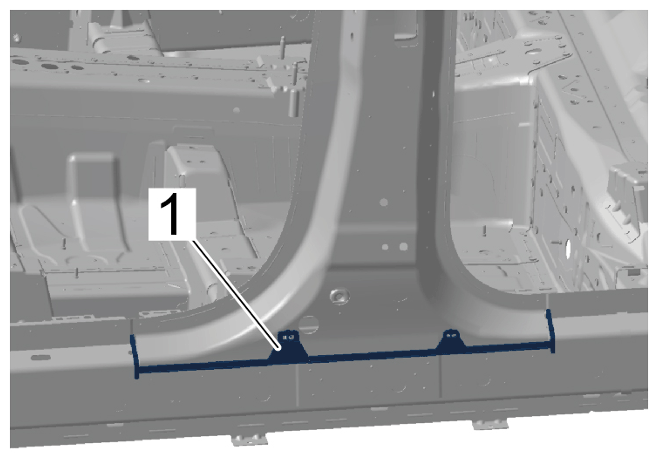

Remove remaining pieces of the bulkhead part -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Baffle plate

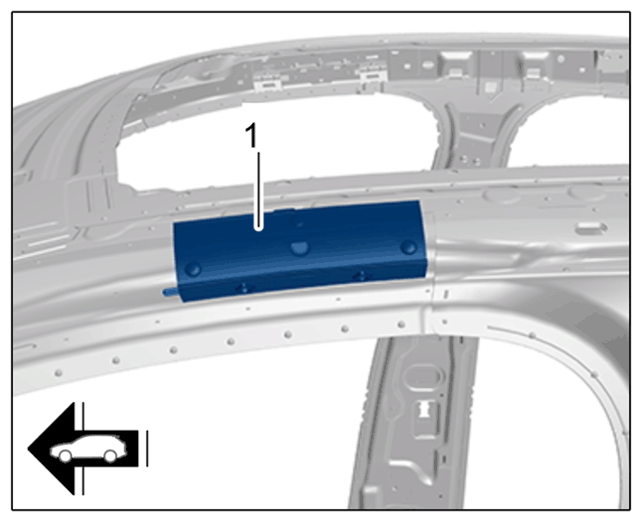

Remove remaining pieces of the foam part -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Foam part

Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

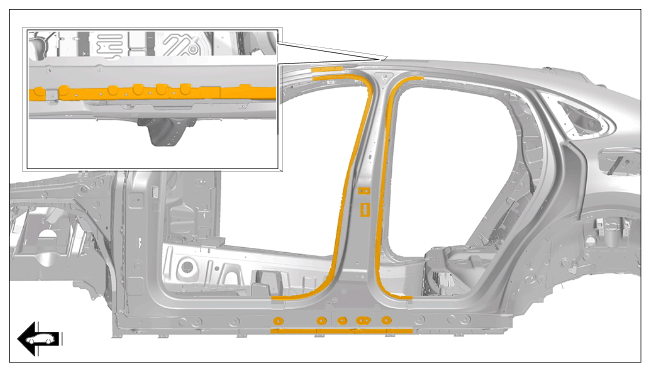

Prepare marked areas > Bonding and rivet areas for bonding and riveting.
> 5X00IN21 APPLYING BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding and rivet areas

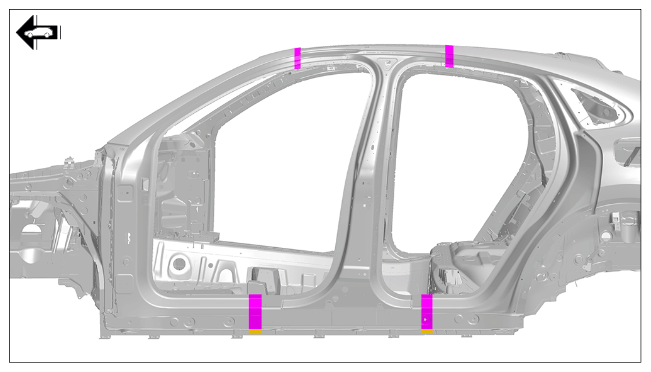

Prepare marked areas > Welding areas (on body side) for a full weld using inert gas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welding areas (on body side)

Yellow	Applying full weld using inert gas (steel)
Magenta	Applying full aluminium weld using inert gas > 5X00IN10 WELDING ALUMINIUM

Insert new bulkhead part -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Baffle plate
