Installing B-Pillar

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

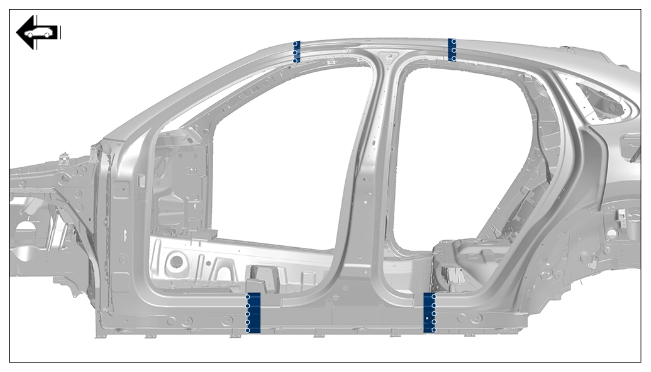

1. Tack on sheet metal insert > Sheetmetal insert  used as a welding backing strip on the body.

   > 5X00IN10 WELDING ALUMINIUM

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

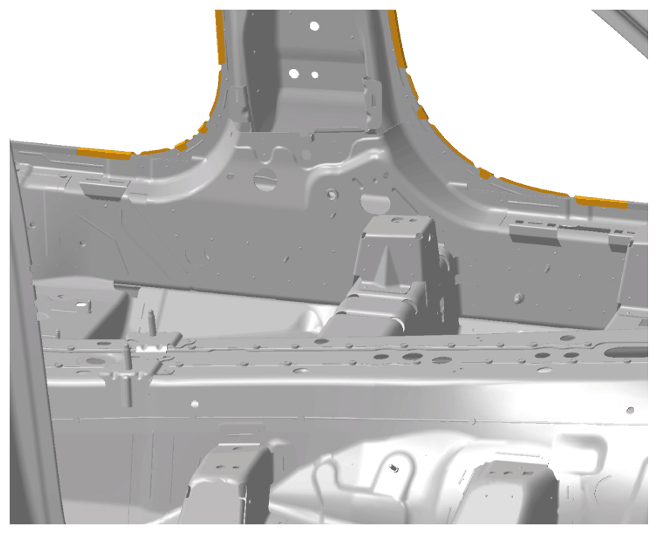

   Sheetmetal insert

2. Position B-pillar and check that it fits perfectly.

   Information

   • Apply adhesive evenly over the entire bonding surface.

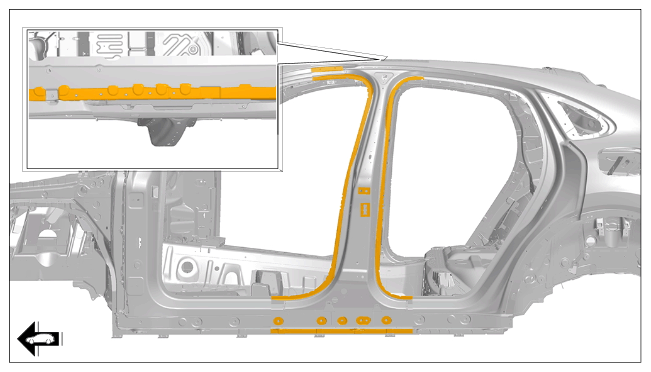

3. Apply adhesive on bonding area > Bonding and rivet areas  of the body.

   > 5X00IN21 APPLYING BODY STRUCTURAL ADHESIVE

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding and rivet areas

   Information

   • Apply adhesive evenly over the entire bonding surface.

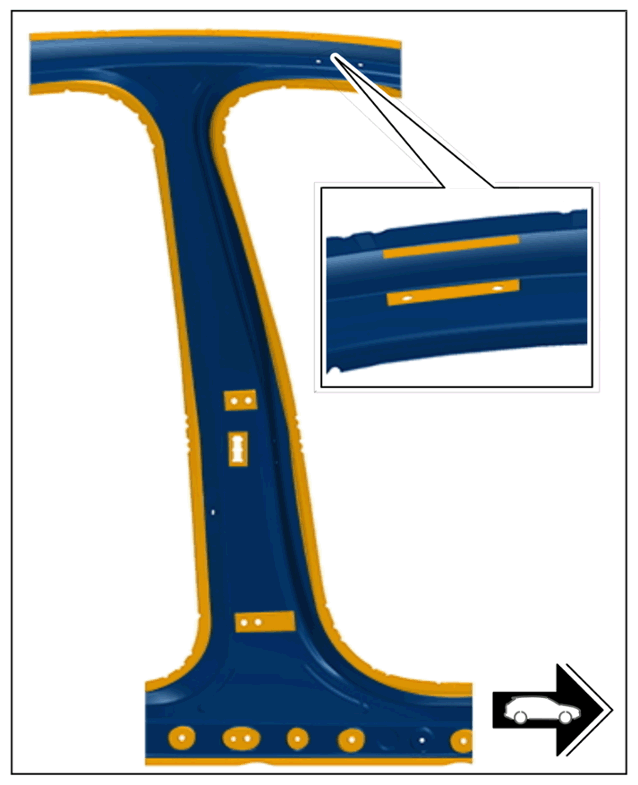

4. Apply adhesive on B-pillar > Bonding area on B-pillar  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area on B-pillar

   1. 4.1  Apply adhesive evenly on the B-pillar > Bonding area on B-pillar  .

      > 5X00IN21 APPLYING BODY STRUCTURAL ADHESIVE

      > Application depth 0.5 mm

   2. 4.2  Also apply a bead of adhesive all around the bonding surface.

      > 5X00IN21 APPLYING BODY STRUCTURAL ADHESIVE

      > Application depth 3 mm

5. Stick on foam part.

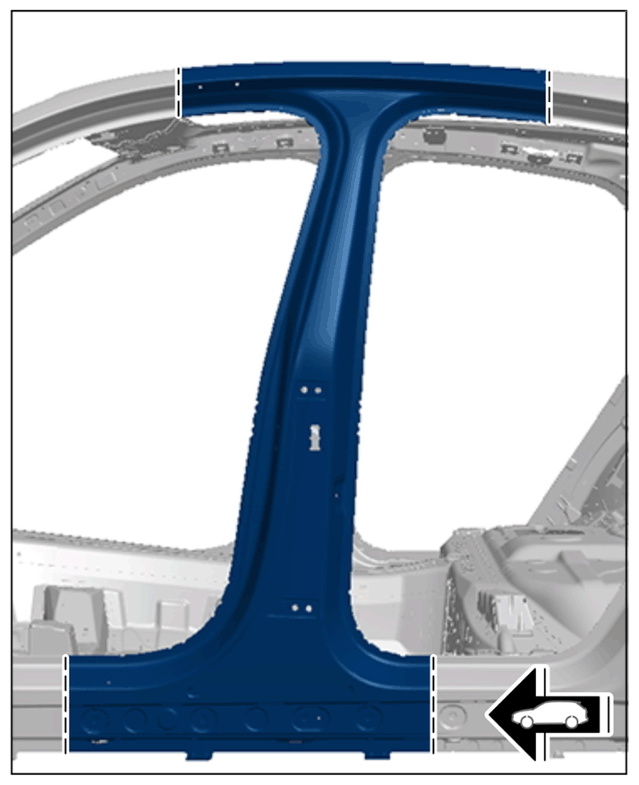

6. Fit in and secure the B-pillar > B-pillar  .

   > 5X00IN GAP SIZE

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   B-pillar

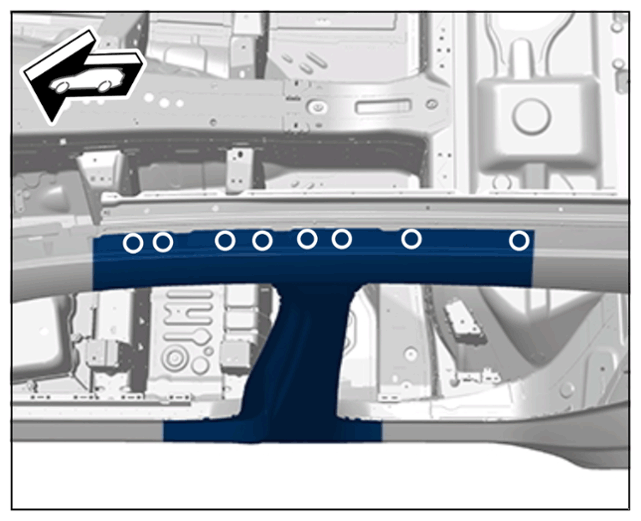

7. Rivet in the B-pillar > Flow-form rivets  .

   > FLOW-FORM RIVETS 9A7.008.606.00

   > 5X00IN23 REPLACE PUNCH RIVETS AND CLINCHING POINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Flow-form rivets

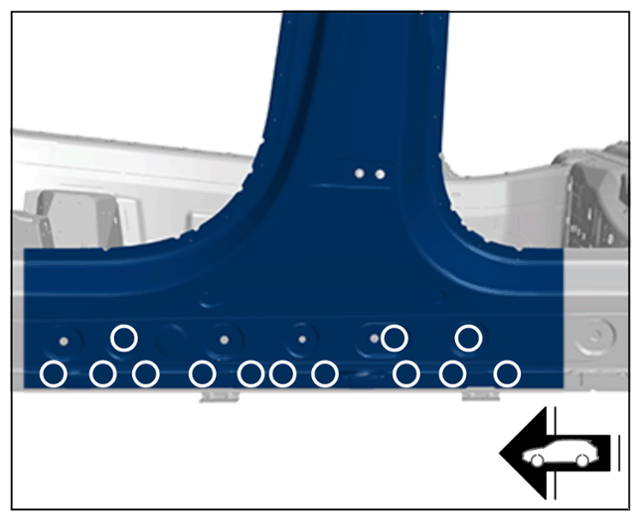

8. Rivet in the B-pillar > Blind rivets  .

   > BLIND RIVETS PAF.009.075

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blind rivets

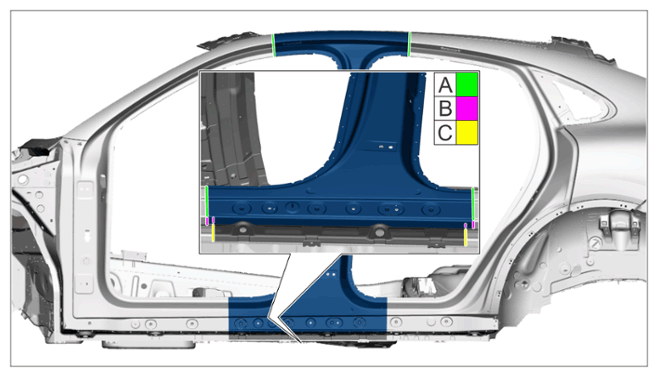

9. Join B-pillar.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joint zones

   1. 9.1  Weld aluminium in areas -A-  .

      > 5X00IN10 WELDING ALUMINIUM

   2. 9.2  Bond and grout areas -B-  .

      > 5X00IN21 APPLYING BODY STRUCTURAL ADHESIVE

   3. 9.3  Weld continuous steel-seam area -C-  .

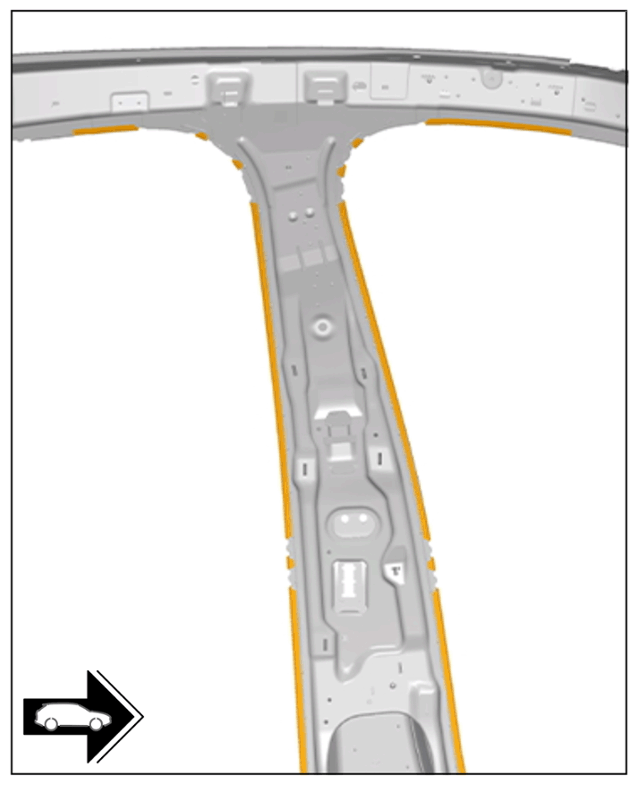

10. Bend over edges in the front door aperture > Edges in door aperture, top  using > VAS 6635/5 - seaming pliers  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Edges in door aperture, top

11. Bend over edges in the front door aperture > Edges in door aperture, bottom using > VAS 6635/5 - seaming pliers  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Edges in door aperture, bottom
