Installing A-Pillar

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

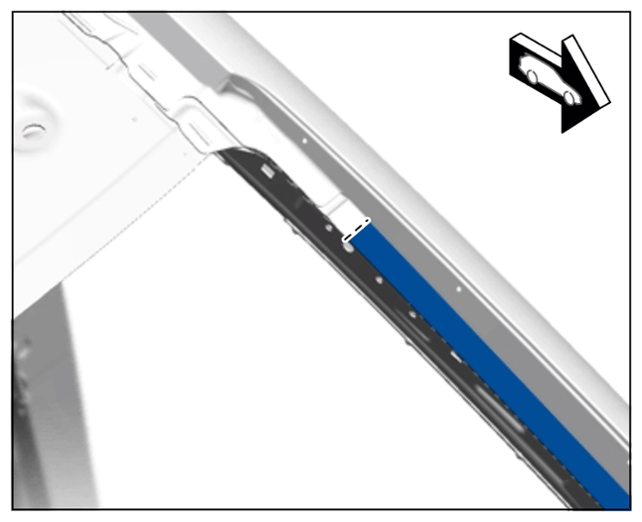

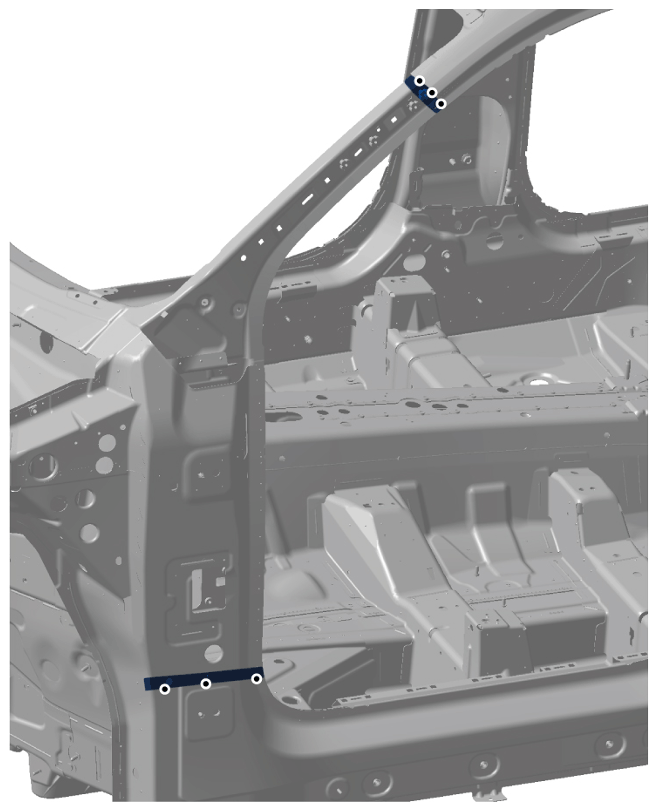

1. Tack on sheetmetal insert > Sheetmetal insert  used as a welding backing strip on the body.

   > 5X00IN10 WELDING ALUMINIUM

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sheetmetal insert

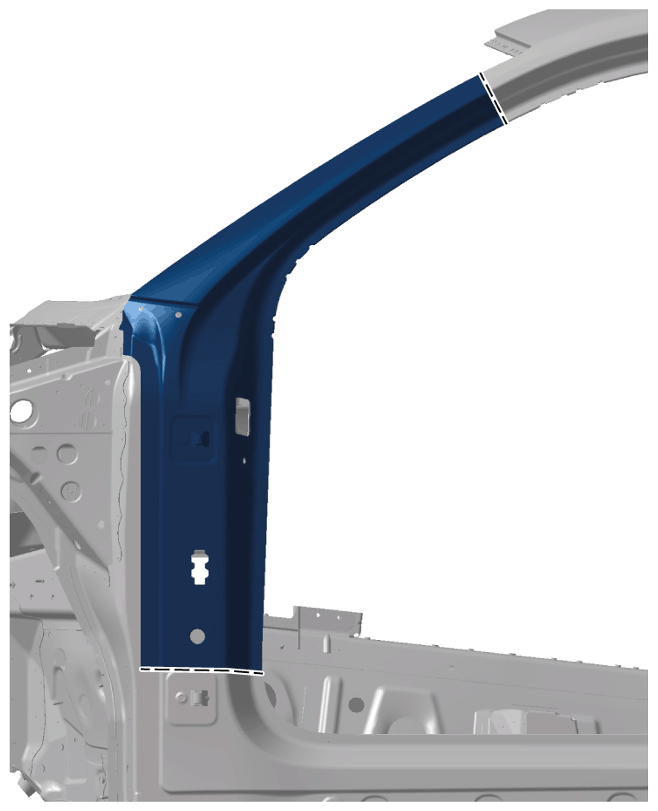

2. Position A-pillar and check that it fits perfectly.
3. Remove A-pillar again.

   Information

   • Apply adhesive evenly over the entire bonding surface.

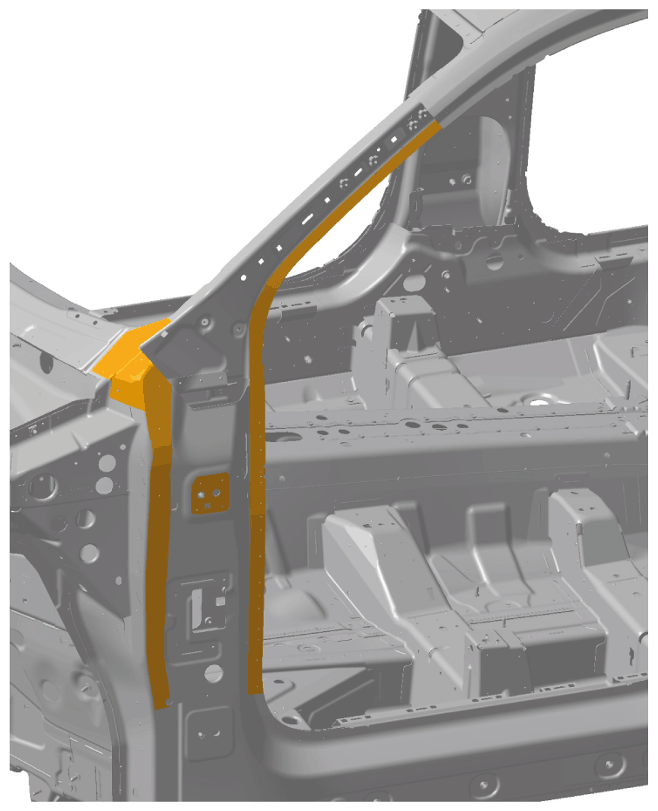

4. Apply adhesive on joint areas > Joint areas of A-pillar  of the body.

   > Application depth 0.5 mm

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joint anas of A-pillar

   Information

   • Apply adhesive evenly over the entire bonding surface.

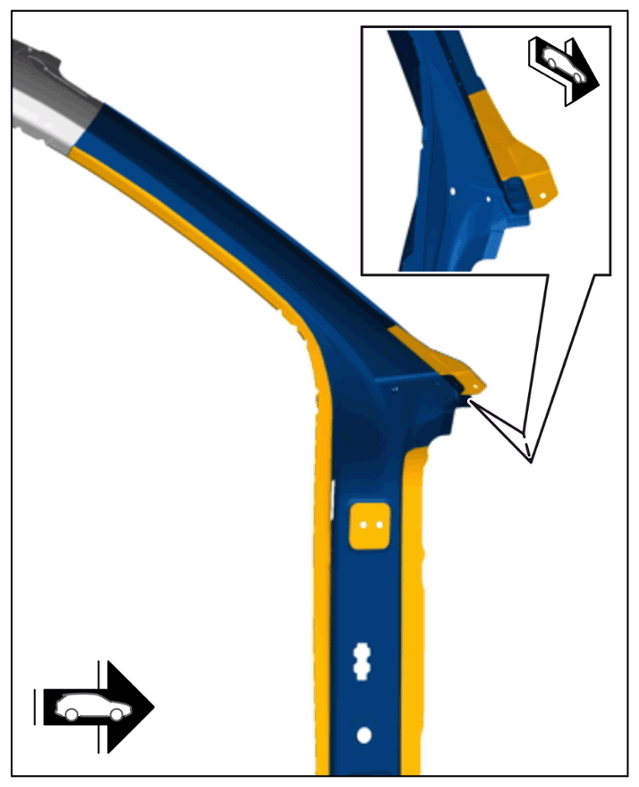

5. Apply adhesive on A-pillar > Applying adhesive on A-pillar  .

   > Application depth 0.5 mm

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Applying adhesive on A-pillar

   1. 5.1  Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm

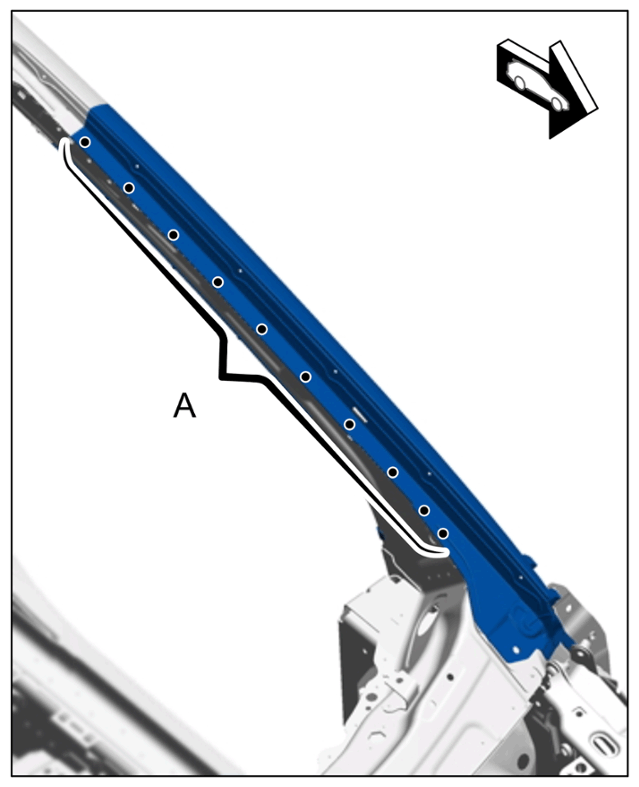

6. Rivet in the A-pillar in area -A-  .

   > FLOW-FORM RIVETS 9A7.008.606.00

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   A-pillar

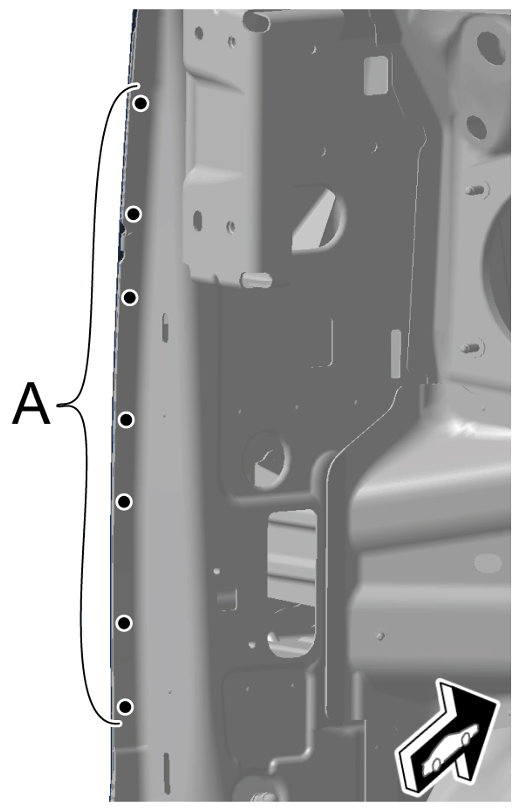

7. Resistance spot-wel d the A-pillar in area -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spotwelds

8. Apply an aluminium weld to the A-pillar in the marked areas > Welding areas  .

   > 5X00IN10 WELDING ALUMINIUM

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Welding areas

9. Apply a full weld to the insert at the front side > Insert  using inert gas.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Insert

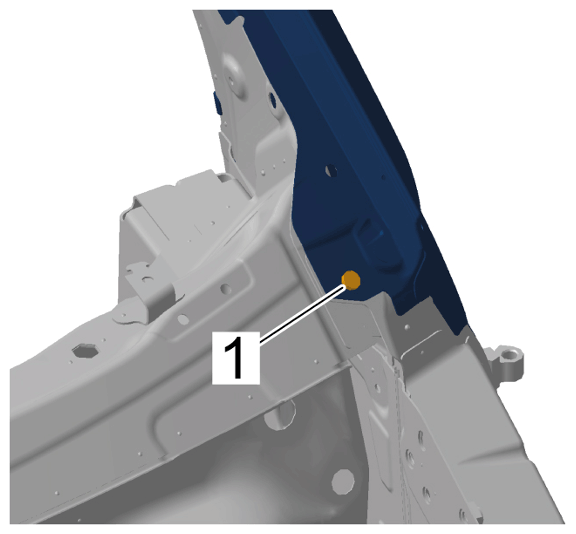

10. Screw in self-tapping screw -1-  . > Self-tapping screw

    > 5X00IN24 SETTING SELF-TAPPING SCREWS

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Self-tapping screw

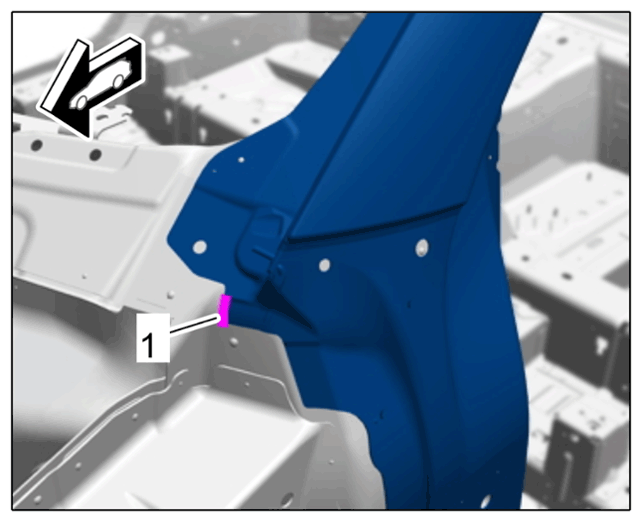

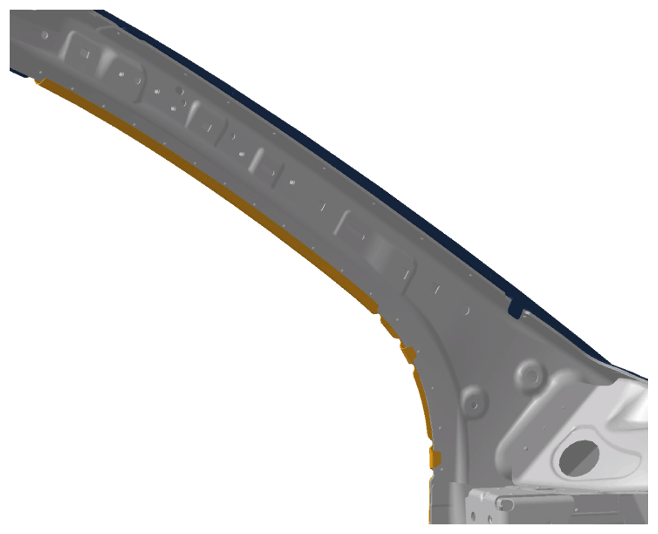

11. Apply a full weld to the marked area -1-  using inert gas.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Welded seam

12. Bend over edges in the door aperture > Edges in door aperture  at the front using > VAS 6635/5 - seaming pliers

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Edges in door aperture
