Removing Rear Cross Member

Remove punch rivets > Punch rivets using > VAS 852 001 - dent removal unit and > VAS 6790 - compact booster .
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

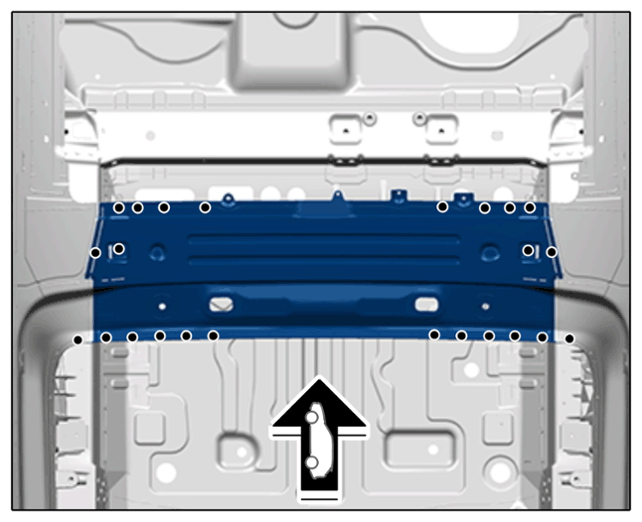

Punch rivets
Heat bonding areas > Bonding areas using > V.A.G 1416 - hot-air blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

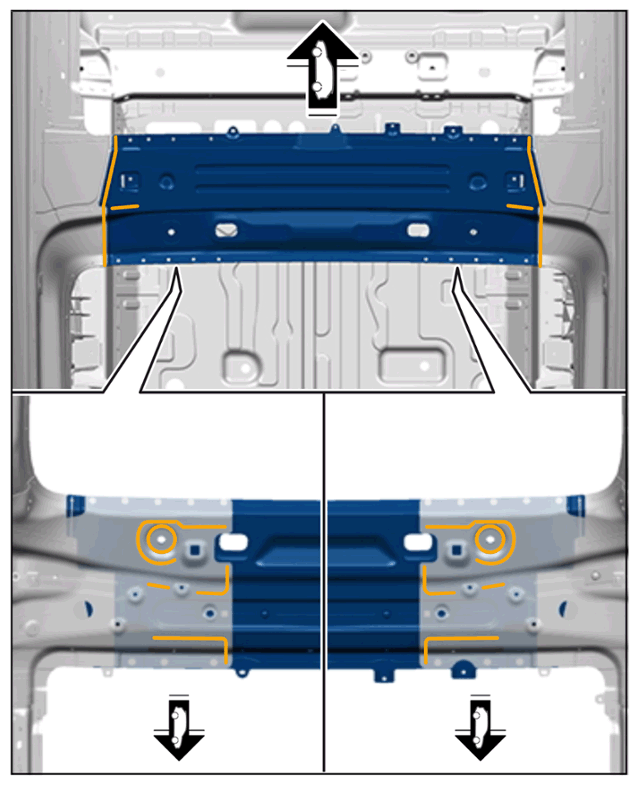

Bonding areas
Heat bonding areas on foam part of hinge reinforcement > Bonding area on foam part of hinge reinforcement on both sides using > V.A.G 1416 - hot-air blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

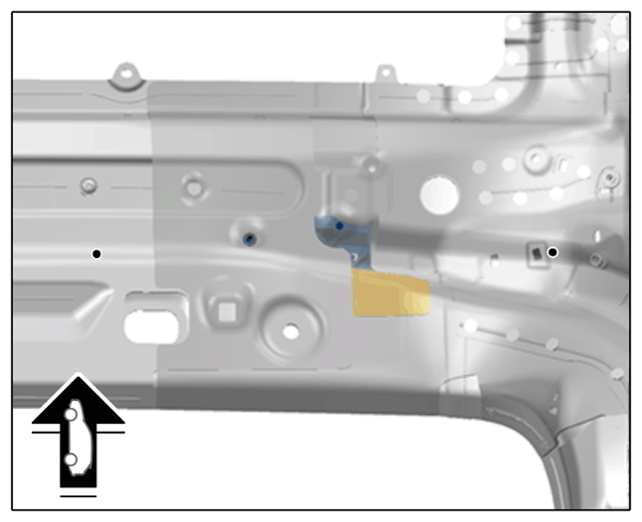

Bonding area on foam part of hinge reinforcement
Remove rear cross member.
