Installing Cross Member Rear

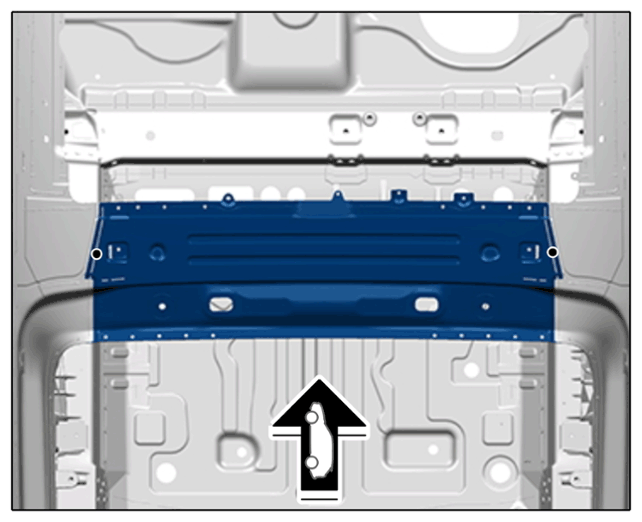

Position cross member rear and check that it fits perfectly.
Remove cross member rear.
Information
- Apply adhesive evenly over the entire bonding surface.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

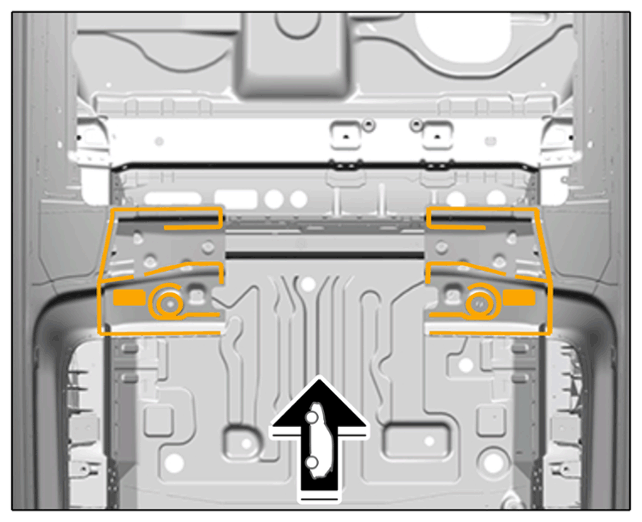

Apply adhesive to joint areas on the body > Bonding area on joint area of the body . > Application depth 0.5 mm
Working with body structural adhesive.

> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area on joint area of the body

Information
- Apply adhesive evenly over the entire bonding surface.

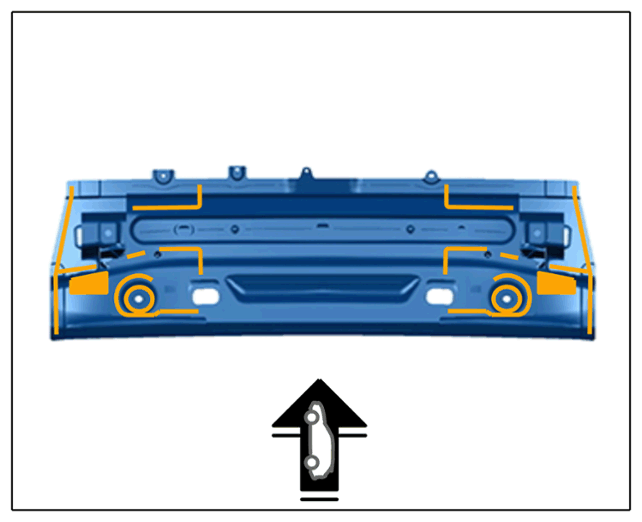

Apply adhesive on the rear cross member > Bonding area on cross member . > Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area on cross member
1. 4.1 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm
Join rear cross member using flow-form rivets. > FLOW-FORM RIVET 9A7.008.607.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Flow-form rivets
Join rear cross member using blind rivets. > BLIND RIVET PAF.008.769

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Blind rivets
