Removing Front Roof Cross Member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

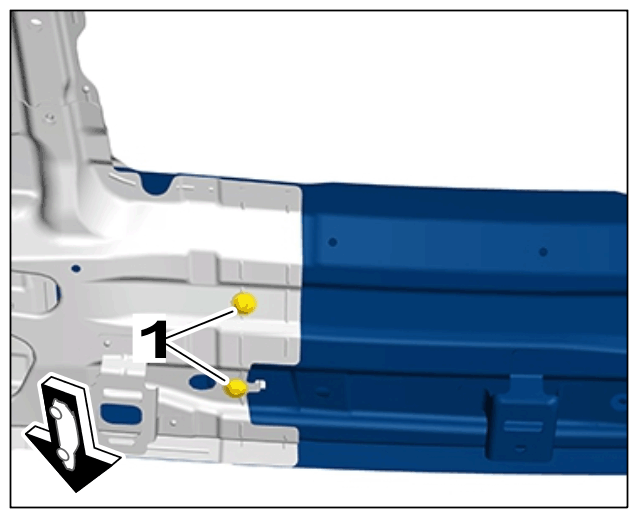

Screws on front roof rack

> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

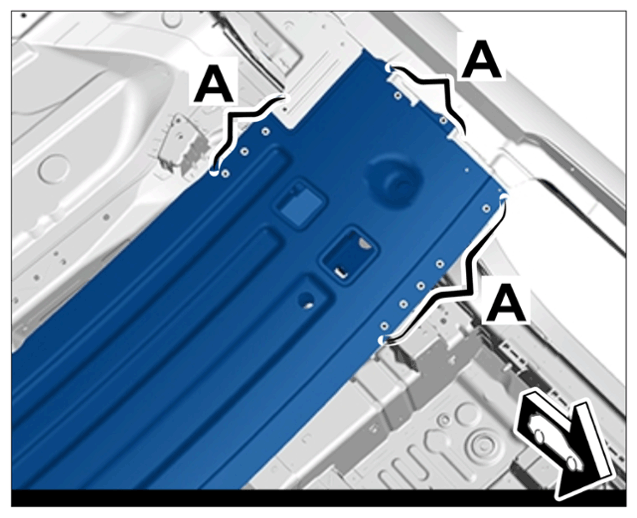

Punch rivets

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sheetmetal bracket on front roof cross member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

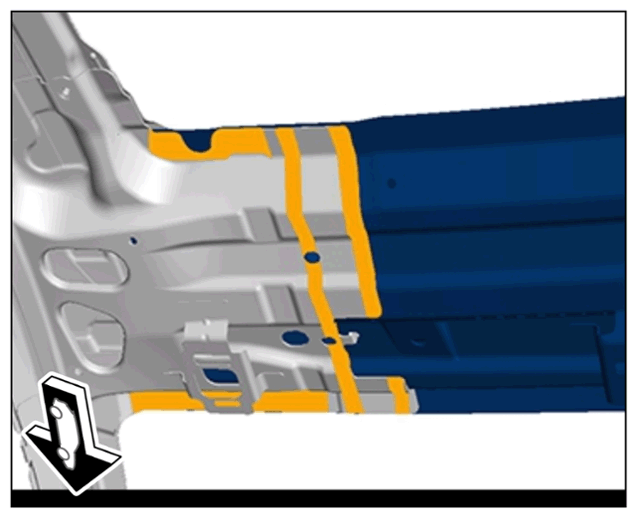

Bonding areas of front roof cross member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

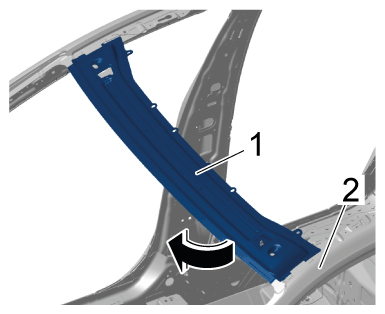

Front roof cross member

1. 5.1  Lift outer roof pillar -2-  slightly.
2. 5.2  Unscrew front roof cross member -1-  under the outer roof pillar -2-  (-Arrow-  ) and remove it.
