Installing Front Roof Cross Member

Fit front roof cross member and check that it fits perfectly.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
Information
- Apply adhesive evenly over the entire bonding surface.

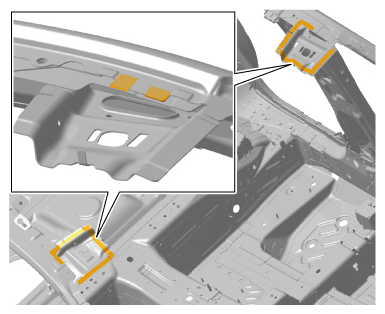

Apply adhesive in the marked areas > Bonding areas on connection areas of the body on the body. > Application depth 0.5 mm
> 5X00IN21 WORK WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas on connection areas of the body

Information
- Before final assembly, make suie you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
Information
- Apply adhesive evenly over the entire bonding surface.

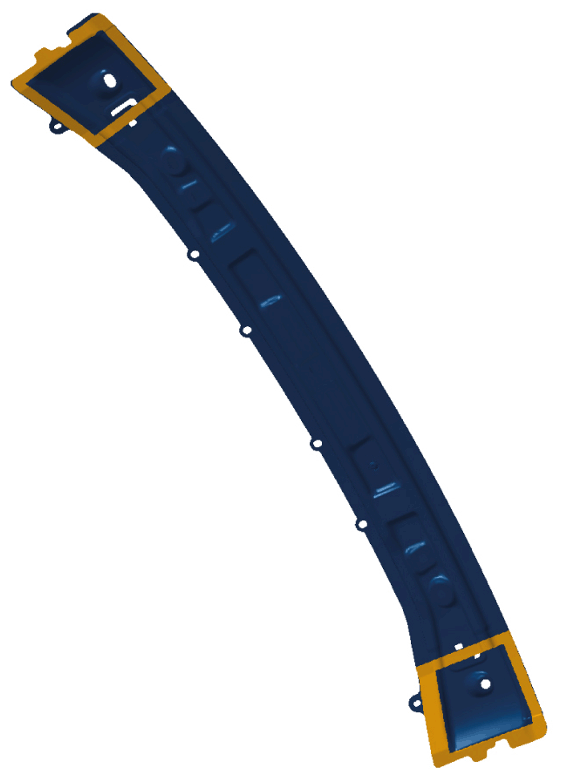

Apply adhesive in the marked areas > Bonding areas on the front roof cross member.
> Application depth 0.5 mm

> 5X00IN21 WORK WITH BODY STRUCTURAL ADHESIVE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas
1. 3.1 Also apply a bead of adhesive all around the marked areas. > Bonding areas
  > Application depth 3 mm

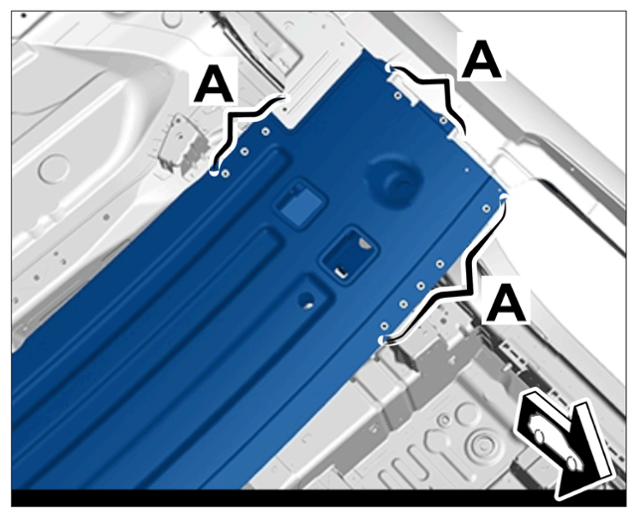

Rivet in front roof cross member in area -A- .
> FLOW-FORM RIVET 9A7.008.607.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rivet areas

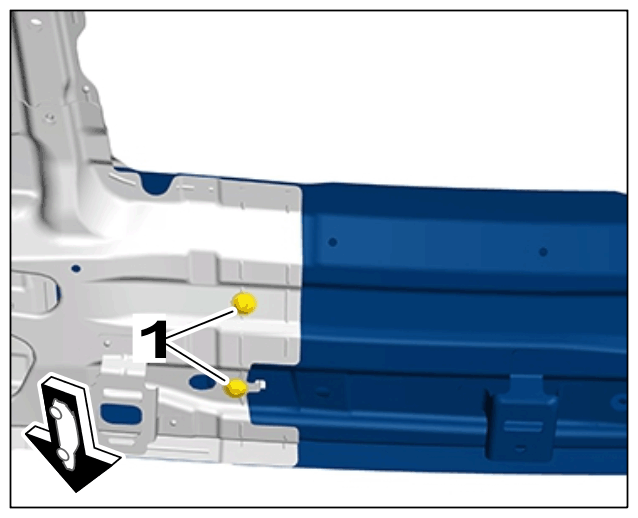

Screw in screws -1- and tighten with > Tightening torque 8 Nm (6 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on front roof cross member
