Removing Outer Roof Rail

Information

Mark cuts in accordance with the new part. Make sure to leave an overlap of approx. 30 mm with respect to the body.

1. Mark cuts.
   1. 1.1  Mark cut -A-  on the C-pillar. Cut from plate recess to plate recess.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Marking

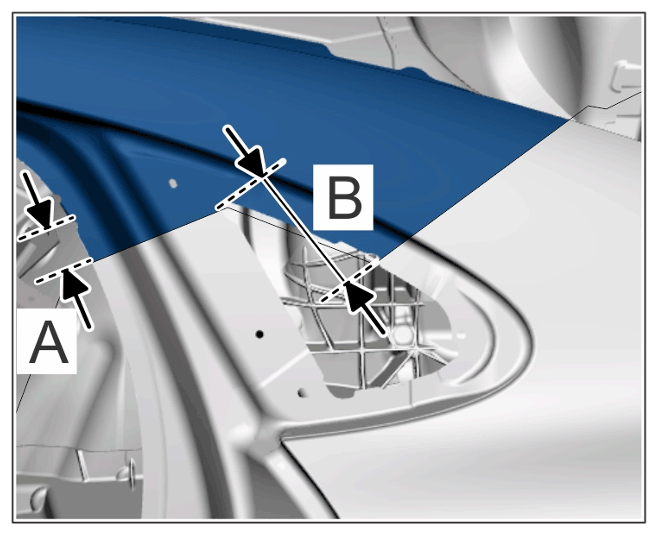

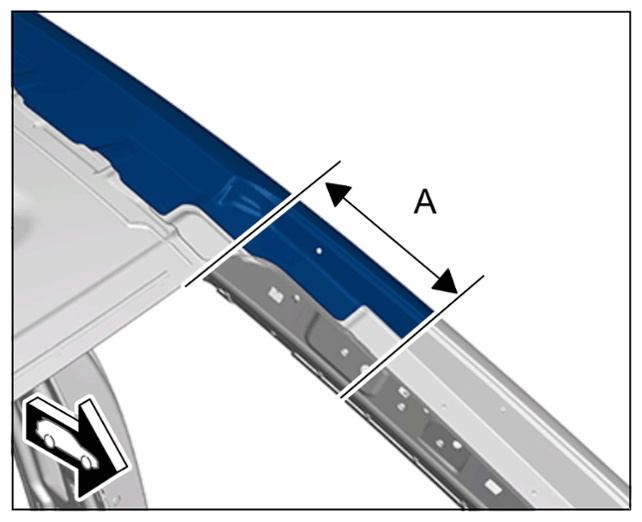

   2. 1.2  Mark cut on the D-pillar in the window aperture area at -Dimension B-  . Mark > distance 90 mm  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Marking

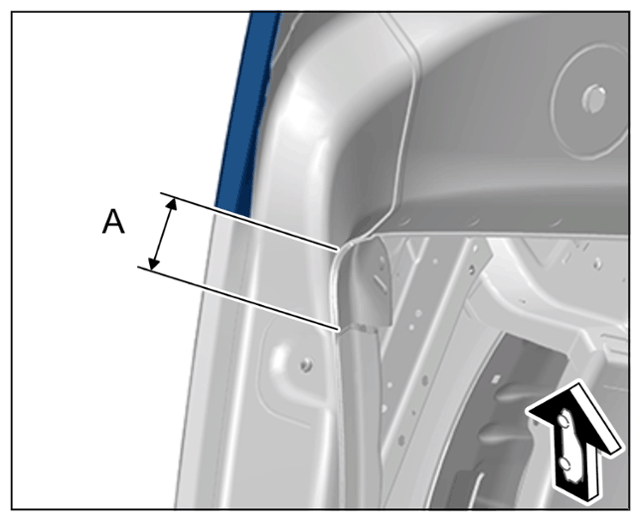

   3. 1.3  Mark cut on the D-pillar in the water drainage channel area at -Dimension A-  > Distance 27 mm  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Marking on D-pillar, rear

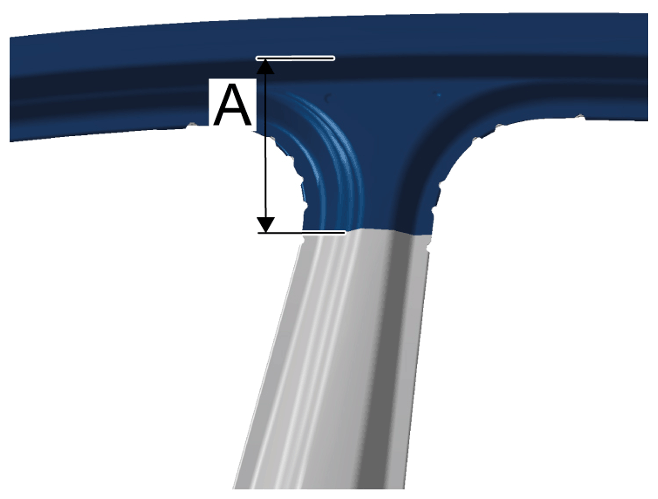

   4. 1.4  Mark cut on the B-pillar at -Dimension A-  > Distance 145 mm  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Marking on B-pillar

   5. 1.5  Mark cut on the A-post at -Dimension A-  > Distance 100 mm  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Marking on A-pillar

      Information

      Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

2. Make cuts.
3. Disconnect connection points.

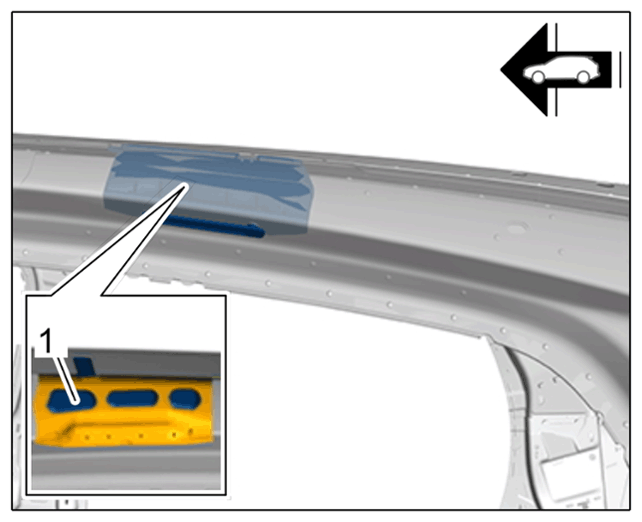

   1. 3.1  Drill through resistance spotwelds -1-  on the A-pillar. > diameter 6.6 mm

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Resistance spot welds on A-post

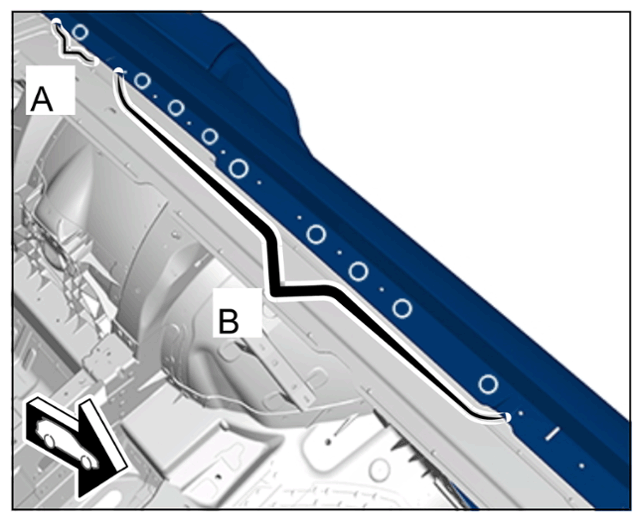

   2. 3.2  Remove front punch rivets using > VAS 852 001 - dent removal unit  and > VAS 6790 - compact booster  . > Front punch rivets

      > 5X00IN23 REPLACE PUNCH RIVETS AND PENETRATED JOINTS

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

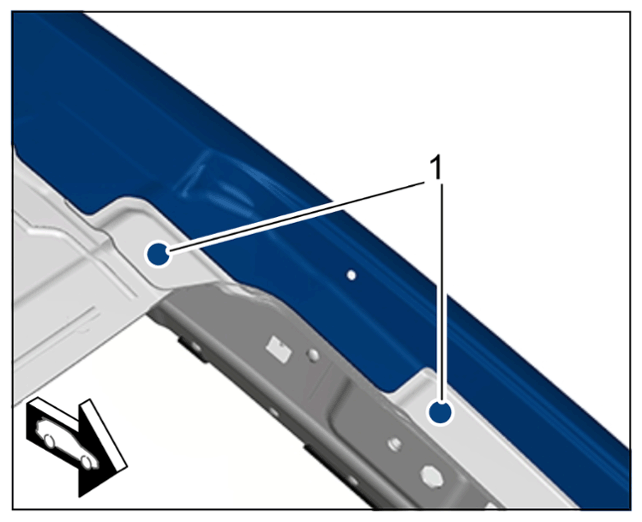

      Front punch rivets

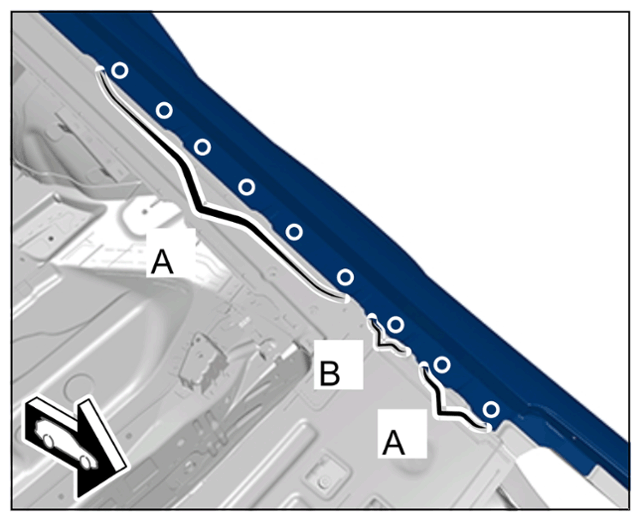

   3. 3.3  Remove rear punch rivets using > VAS 852 001 - dent removal unit  and > VAS 6790 - compact booster  .

      > 5X00IN23 REPLACE PUNCH RIVETS AND PENETRATED JOINTS

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Rear punch rivets

      Remove punch rivets D-pillar with > VAS 852 001 - body dent removal system, aluminium  and > VAS 6790 - Compact Booster  .

      > 5X00IN23 REPLACE PUNCH RIVETS AND PENETRATED JOINTS

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

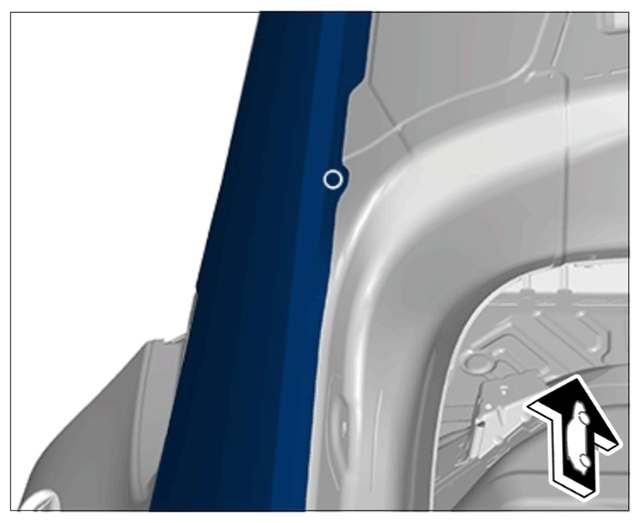

      Punch rivets on D-pillar

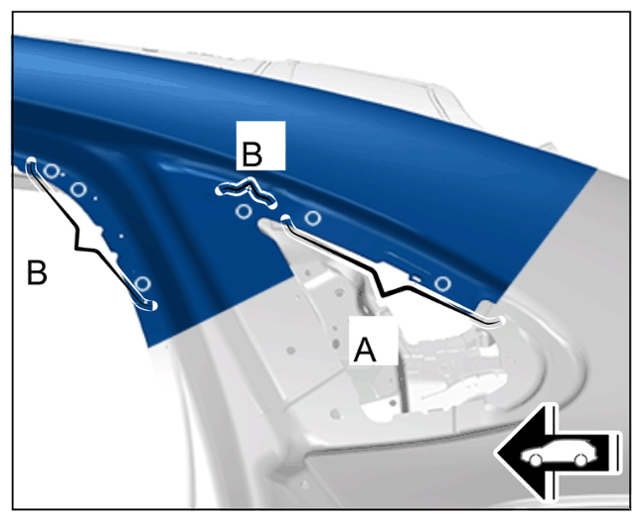

4. Remove punch rivets on C-pillar and D-pillar -A-  and -B-  with > VAS 852 001 - body dent removal unit, aluminium  and > VAS 6790 - Compact Booster  . > Punch rivets on C-pillar and D-pillar

   > 5X00IN23 REPLACE PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Punch rivets on C-pillar and D-pillar

5. Rend up sheetmetal brackets.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sheet metal tabs

   1. 5.1  Heat connection areas using > V.A.G 1416 - hot-air blower  .
   2. 5.2  Bend up sheetmetal brackets in the door apertures using > VAS 6635 - crimping pliers set, 4-piece  .

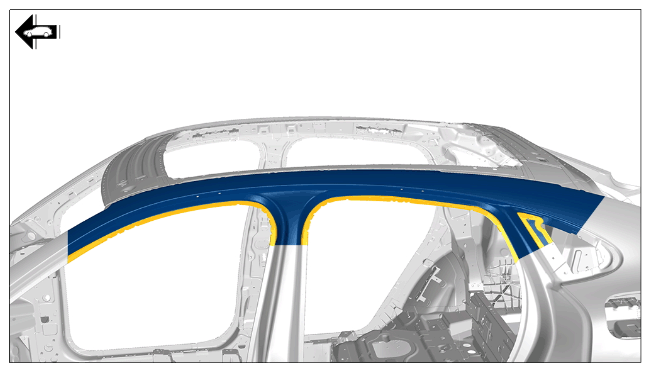

6. Heat bonding areas on the roof using > V.A.G 1416 - hot-air blower  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas on roof

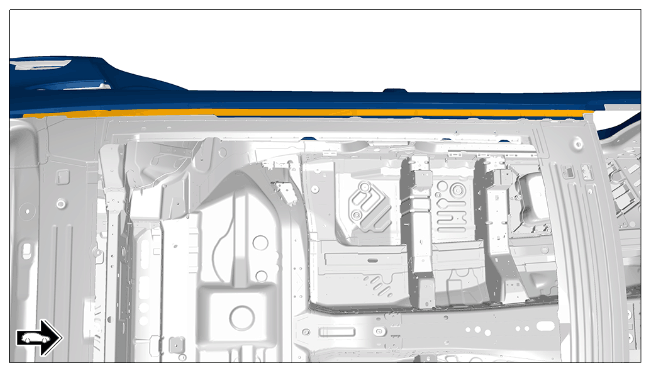

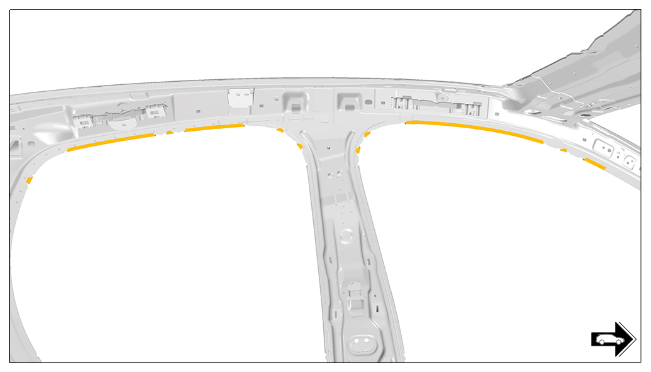

7. Heat bonding areas in the door apertures using > V.A.G 1416 - hot-air blower  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas in door apertures

8. Heat bonding area on rear foam part using > V.A.G 1416 - hot-air blower  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area on rear foam part

9. Remove outer roof rail.
