Removing Roof Rail

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

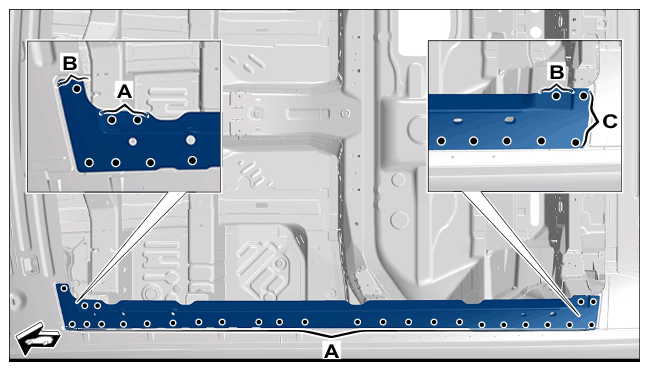

Punch rivet points and spotwelds

1. 1.1  Drill out spot welds -A-  . Do not damage the plate underneath.
2. 1.2  Remove punch rivets in area -B-  and -C-  using > VAS 852 001 - aluminium body dent removal system  and > VAS 6790 - Compact Booster  .

   > 5X00IN23 REPLACE PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on roof rail

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas on roof rail

1. 3.1  Heat bonding areas using > V.A.G 1416 - hot-air blower  .
2. 3.2  Remove roof rail.
