Installing Roof (Carbon Roof)

Information

If roofs have only just been affixed, the doors must oily be closed with the side windows lowered and the tailgate open until the adhesive has hardened.

The tailgate must only be closed when the side windows are lowered.

Always wait 4 hours after bonding the roof before driving the vehicle.

Information

Two people are required  on both sides of the vehicle in order to remove and fit the carbon-fibre composite roof on the body.

There must  be four people  at the vehicle in order to remove and fit the carbon-fibre composite roof.

1. Install roof (carbon roof) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

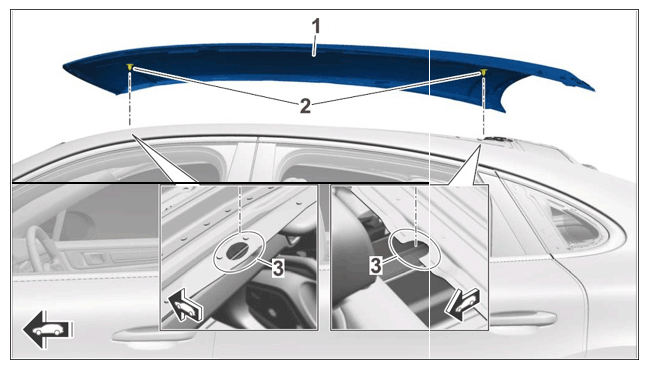

   Installing carbon-fibre composite roof

   Information

   Two people are required  on both sides of the vehicle in order to remove and fit the carbon-fibre composite roof on the body.

   There must  be four people  at the vehicle in order to remove and fit the carbon-fibre composite roof.

   1. 1.1  Lift roof (carbon roof) -1-  using suction cups and carefully position on vehicle.
   2. 1.2  Guide positioning pins -2-  into cut-outs -3-  in the bodyshell and carefully and slowly lower roof (carbon roof) -1-  .
   3. 1.3  Press roof (carbon roof) -1-  on evenly as far as it will go.
2. Wait for adhesive to set.

   > 6X00IN22 Work with Porsche 2-component window adhesive

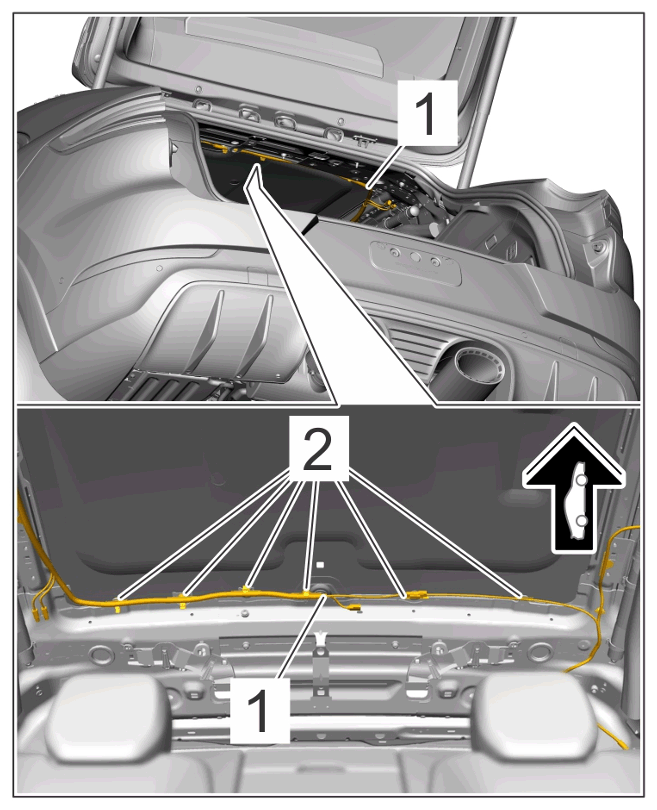

3. Fasten rear wiring harness -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear wiring harness

   1. 3.1  Clip in rear wiring harness brackets -2-  .
