Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...
Strut to longitudinal member	item 2	Tightening torque	20 Nm (14.8 ftlb.)

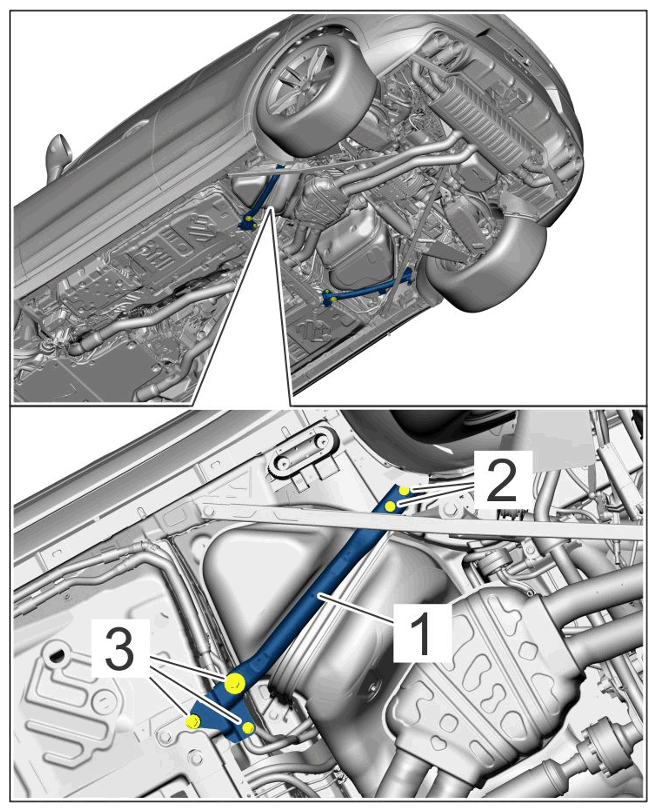

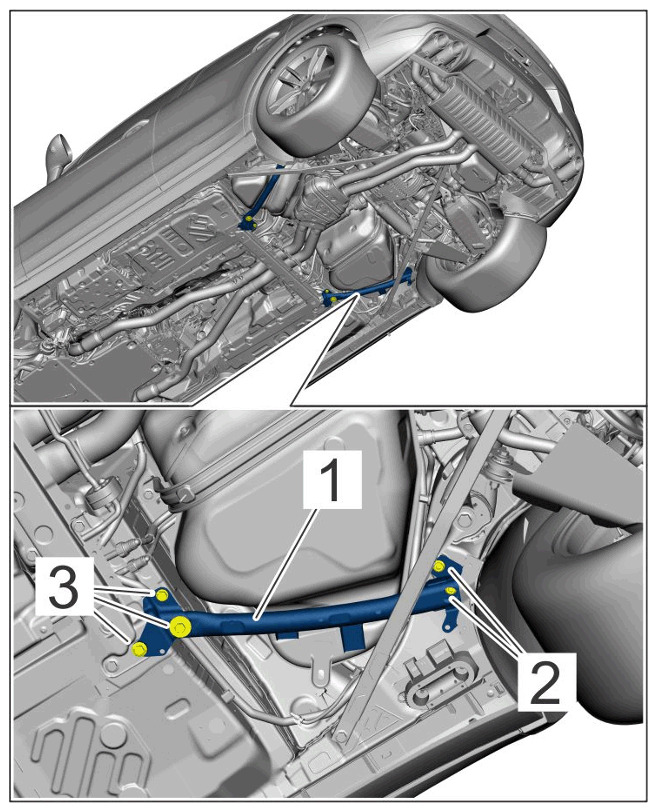

Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Left strut Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Right strut
Strut to tunnel reinforcement	item 3	Tightening torque	49 Nm (36.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Left strut Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Right strut
Waiting period		Time	10 min
