Removing Struts

  1. Unscrew screws -2 and 3-  .

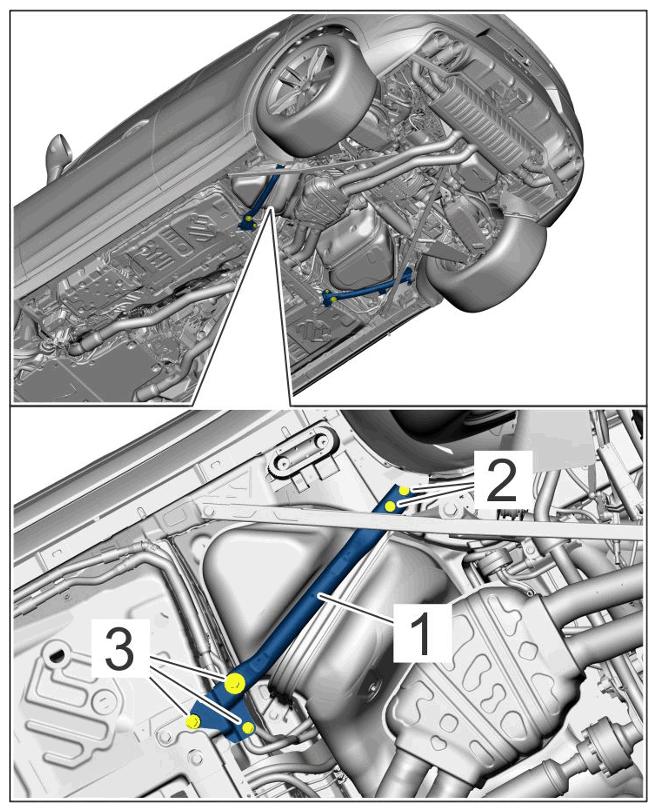

    G16138045Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left strut

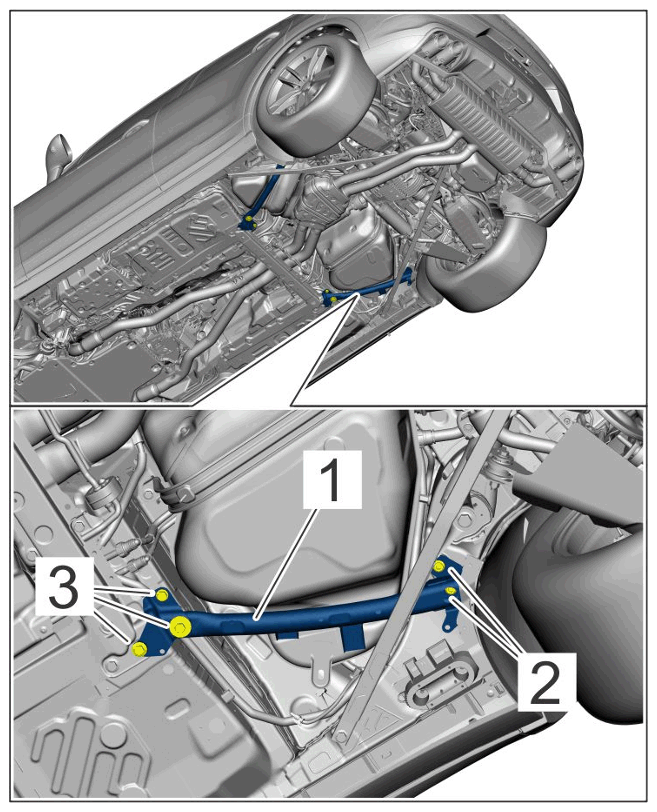

    G16138046Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Right strut

  2. Guide -1-  out struts.
  3. Remove struts -1-  .
