Installing Tunnel Reinforcement

  1. Installation is performed in reverse order to removal.
  2. Tighten screws -4-  with tightening torque. > Tightening torque 49 Nm (36.1 ftlb.)

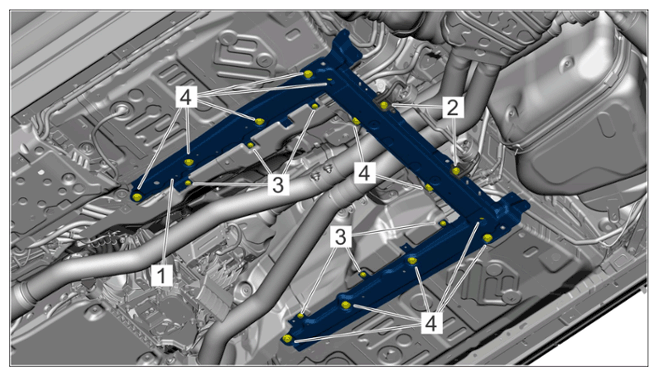

    G16138048Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tunnel reinforcement

  3. Tighten screws -4-  after a waiting time of > Time 10 min  with tightening torque. > Tightening torque 49 Nm (36.1 ftlb.)
