Installing Struts

Installation is performed in reverse order to removal.
Tighten screws -3- and -3- with tightening torque. > Tightening torque 49 Nm (36.1 ftlb.)
Tighten screws -2- and -2- with tightening torque. > Tightening torque 20 Nm (14.8 ftlb.)
Observe the tightening sequence on the left side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

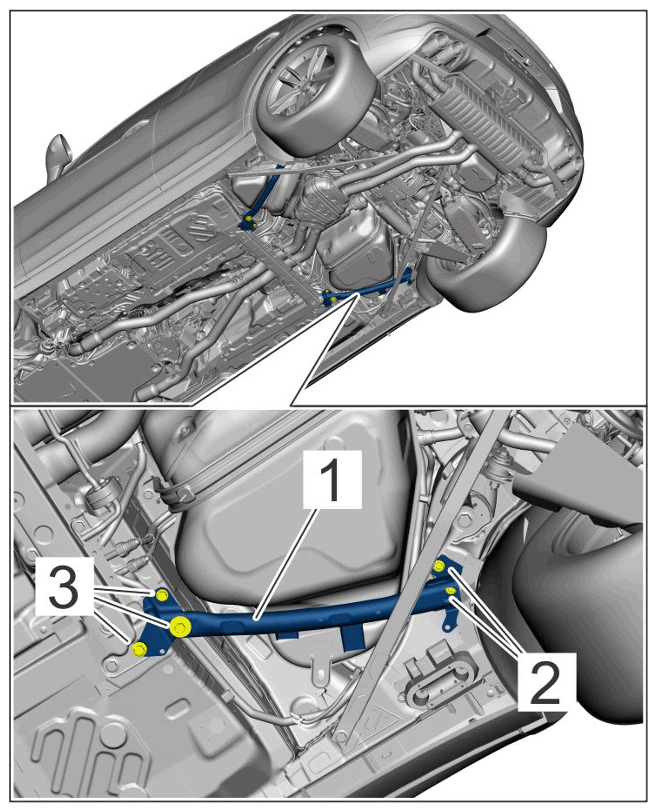

Left strut

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

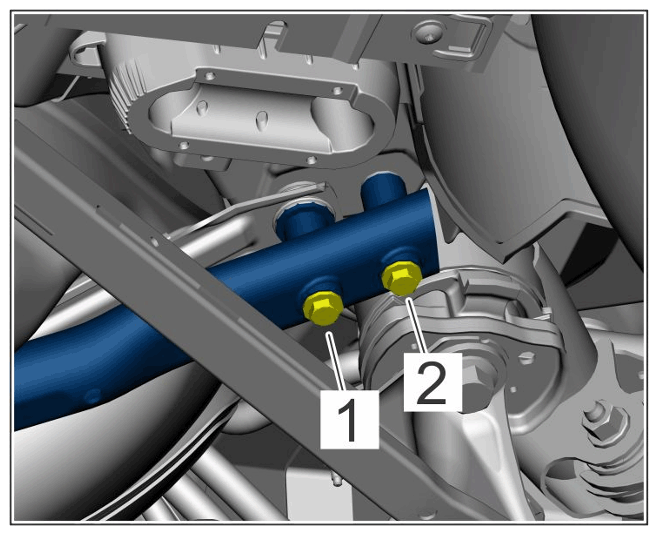

Tightening sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

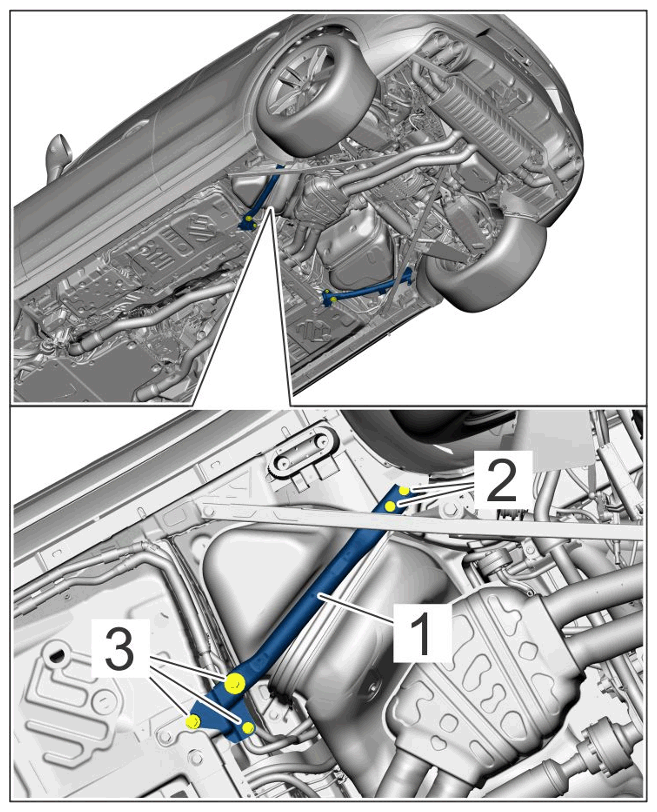

Right strut
Tighten screws -3- and -3- after a waiting time of > Time 10 min using tightening torque. > Tightening torque 49 Nm (36.1 ftlb.)
