WM, 508719 Removing And Installing Cowl Panel Cover
>>
Removing Cowl Panel Cover
Removing Cowl Panel Cover

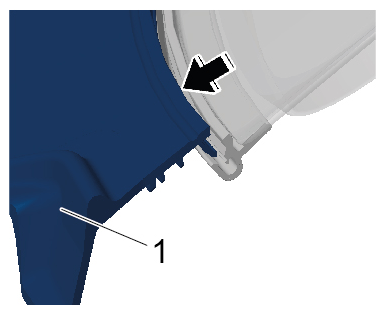

Carefully unclip cowl panel cover
-1-
at the rear edge using a suitable tool
-Arrow-
and remove it.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cowl panel cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
