Preliminary Work

  1. Remove windscreen moulding at the left and right.

    > 666119 Removing and installing moulding for windscreen

  2. Remove wiper arms.

    > 922519 Removing and installing wiper arms

  3. Remove front lid seal.

    >  WM, 553319 REMOVING AND INSTALLING FRONT LID SEAL

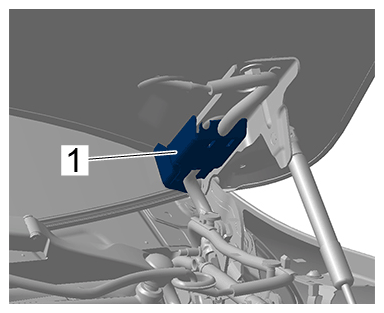

  4. Remove cable cover -1-  at the left and right of the hinge.
    G16137154Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable cover
