Installing Cowl Panel Cover

  1. Install cowl panel cover -1-  .

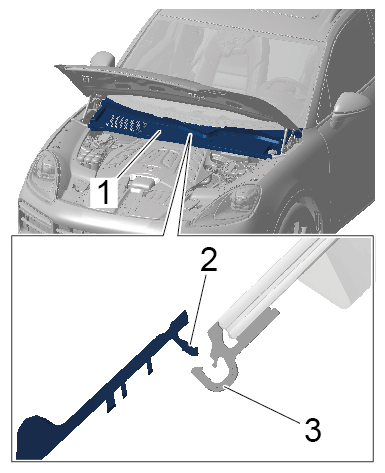

    G16137156Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cowl panel cover on plenum, panel

    1. 1.1  Clean channel on retaining strip -3-  .
    2. 1.2  Insert cowl panel cover -1-  into the retaining strip -3-  and align it.
    3. 1.3  Engage retaining lug -2-  on the cowl panel cover -1-  in the retaining strip -3-  .
