Installing Cross Panel (Lower Section)

  1. Installation is performed in reverse order. Pay particular attention to the following:

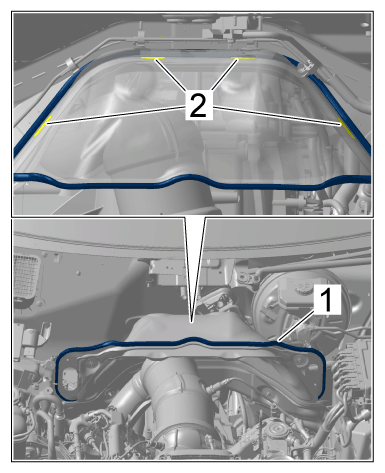

    Check that the seal on the cross panel (lower section) -1-  is fitted securely in the supports -2-  .

    G16137152Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seal on cross panel (lower section)

    Tighten screws on cross panel (lower section). > Tightening torque 10 Nm (7.5 ftlb.)  >

    Tighten the refrigerant line screw on the cable bushing. > Tightening torque 9 Nm (6.5 ftlb.) (6.6 ftlb.)  >
