Technical Values
TIGHTENING TORQUE SPECIFICATIONS
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

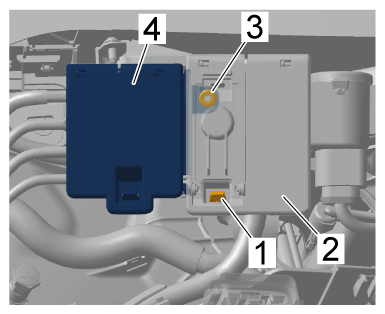

| Nut securing current distributor at the front to external power connection | Item 3 | Tightening torque | 9 Nm (6.6 ftlb.) | ||
|
Current distributor, front |
|||||
| Nuts securing external power connection to bracket | Item 1 | Tightening torque | 3 Nm (2.2 ftlb.) | ||
| Spring nuts securing heat protection panel to cross panel | Item 1 | Tightening torque | 2.5 Nm (1.8 ftlb.) | ||
| Screws securing cross panel to bracket | item 1 | Tightening torque | 10 Nm (7.4 ftlb.) | ||
