Subsequent Work

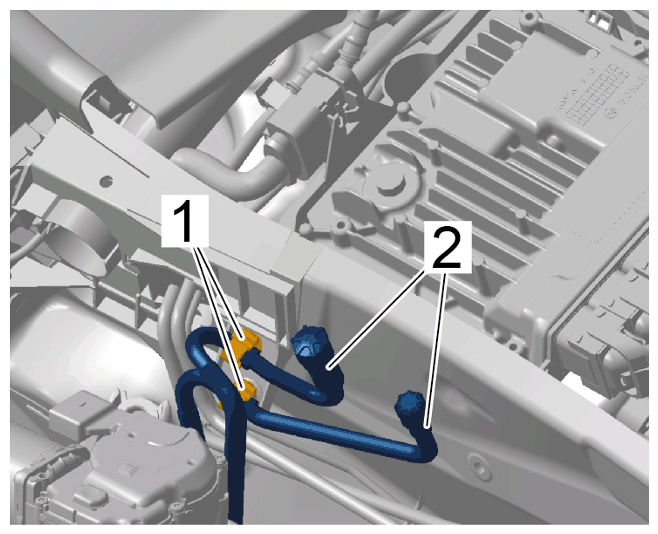

Install air conditioning lines -2- and engage retaining clips -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air-conditioning lines

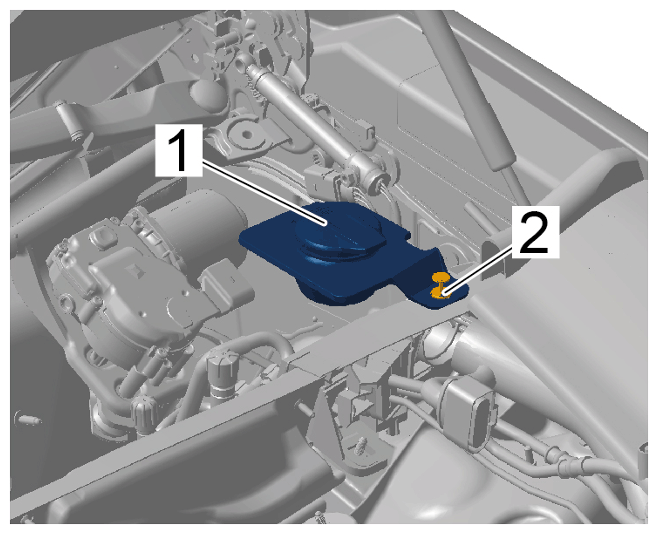

Install filler neck -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Filler neck for windscreen-washer reservoir
Install expansion rivet -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Expansion rivet on windscreen-washer reservoir
Remove washer fluid collection container.
Install the cowl panel cover.
> 508719 REMOVING AND INSTALLING COWL PANEL COVER
Install engine cover (design cover).
> 108319 Removing and installing engine cover (design cover) (V6 Diesel)

> 108319 Removing and installing engine cover (design cover) (V6 Turbo)

> 108319 Removing and installing engine cover (design cover) (V8 Biturbo)

> 108319 Removing and installing engine cover (design cover) (V8 Diesel)
