Removing Cross Panel (Upper Section)

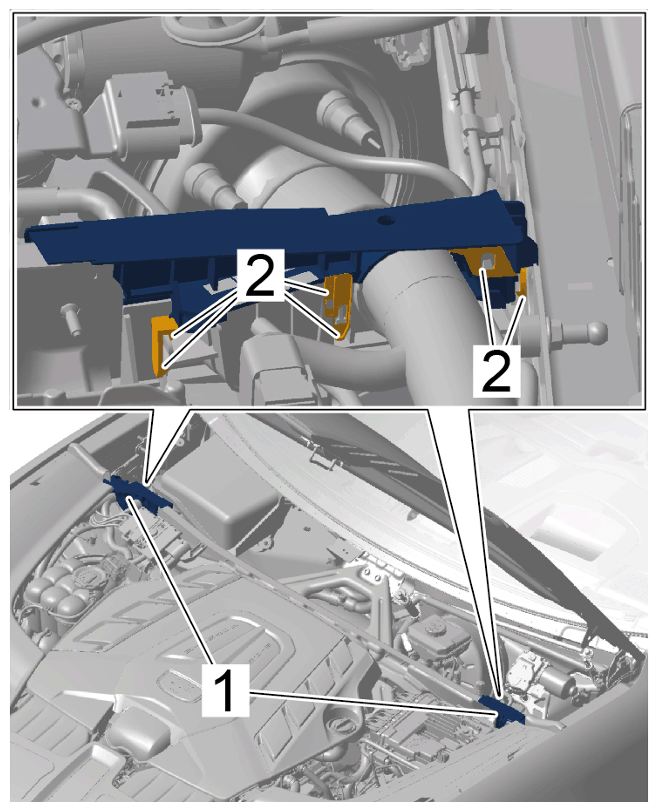

Open sealing elements on wire harness -1- completely at the retaining clips -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealing elements

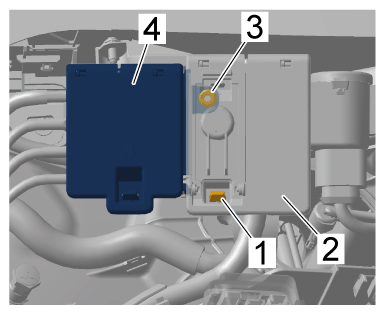

Release locking mechanism for cover on external power connection -1- and open cover on external power connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Power distributor, front
Unscrew nut -3- from front power distributor -4- and unclip front power distributor -4- from external power connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Power distributor, front

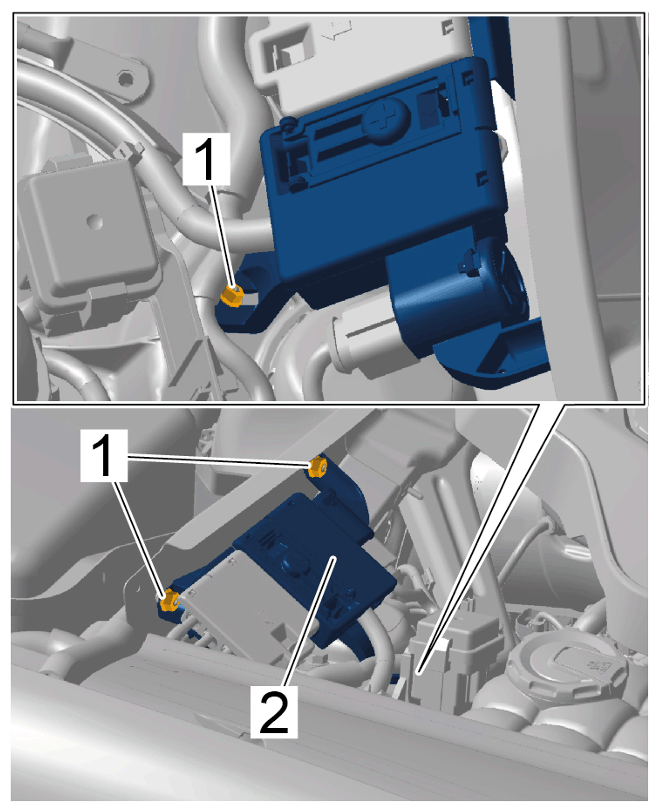

Unscrew nuts -1- and move external power connection -2- with lines connected aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts

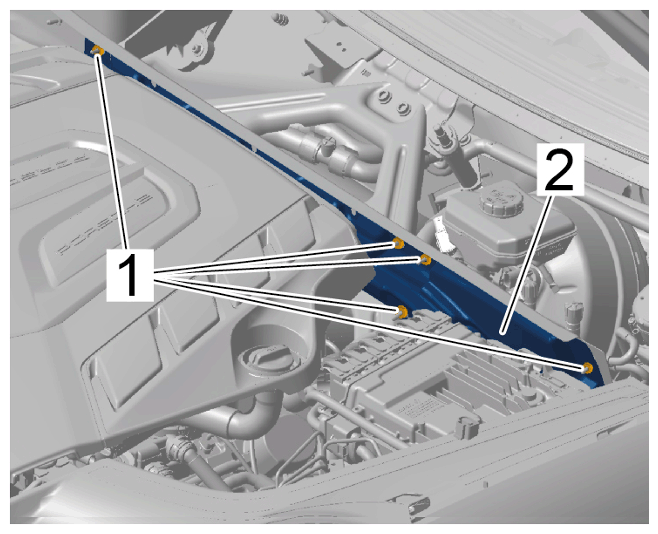

Unscrew speed nuts -1- and detach heat shield -2- from cross panel (upper section).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cross panel (Upper section)

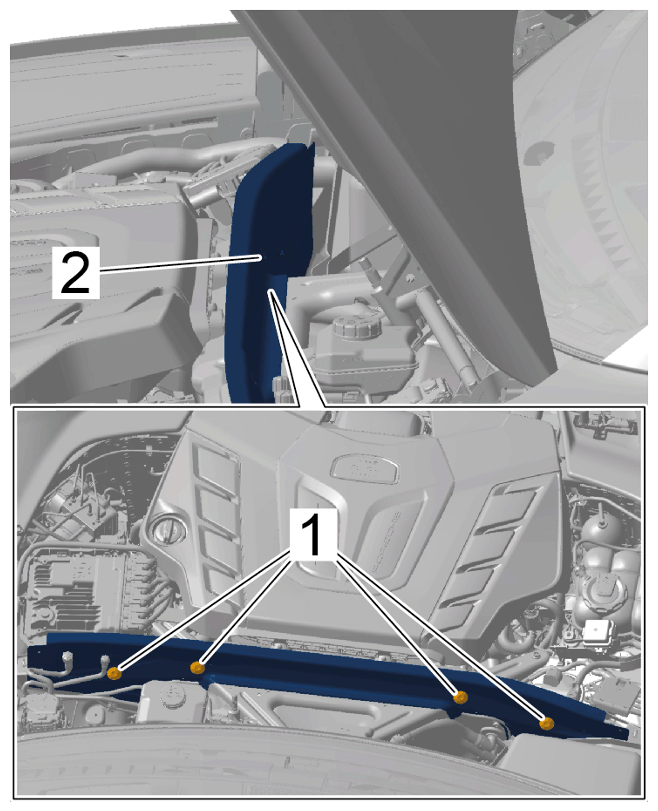

Unscrew and remove screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Lift cross panel (upper section) -2- up and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cross panel (upper section)
