Preliminary Work

Remove engine cover (design cover).
> 108319 Removing and installing engine cover (design cover) (V6 Diesel)

> 108319 Removing and installing engine cover (design cover) (V6 Turbo)

> 108319 Removing and installing engine cover (design cover) (V8 Biturbo)

> 108319 Removing and installing engine cover (design cover) (V8 Diesel)
Remove cowl panel cover.
> 508719 REMOVING AND INSTALLING COWL PANEL COVER
Place a container underneath to collect washer fluid.

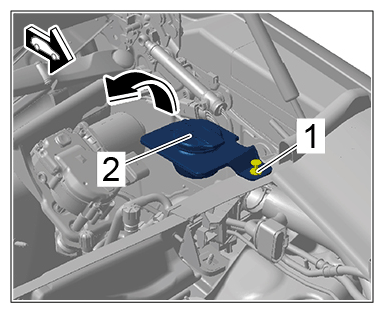

Remove expansion rivet -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Expansion rivet on windscreen-washer reservoir
Pull filler neck -2- up and remove it -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Filler neck for windscreen-washer reservoir

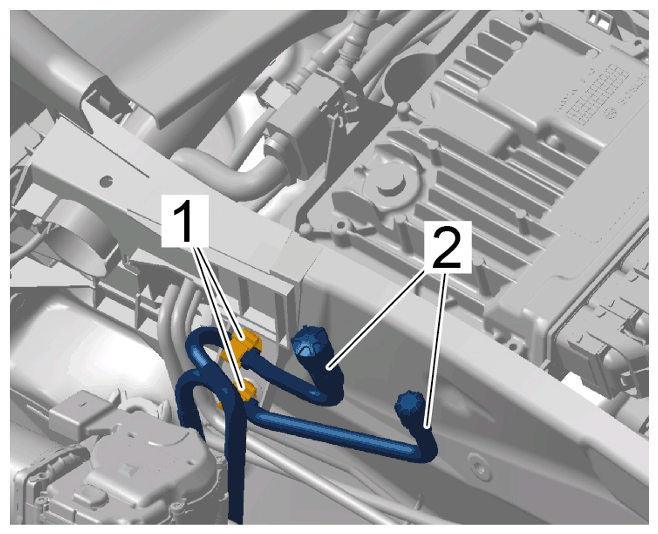

Open retaining clips -1- and pull out air conditioning lines -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air-conditioning lines
