Removing Lower Cover Plate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

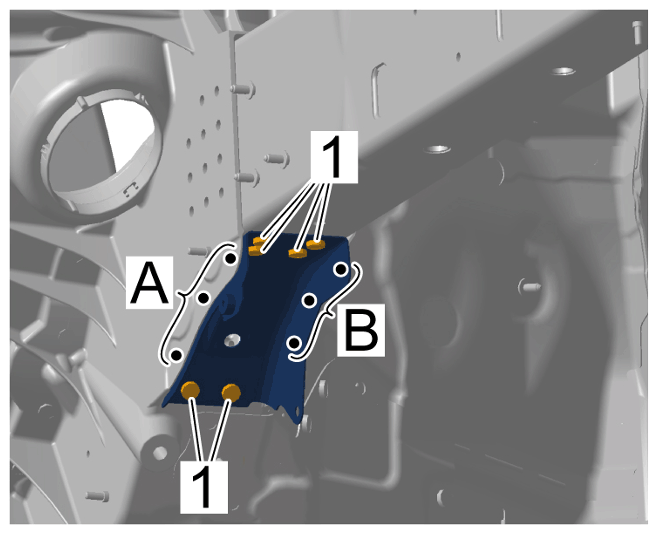

Connection points

1. 1.1  Unscrew self-tapping screws -1-  .
2. 1.2  Remove punch rivets -A-  using > VAS 852 001 - dent removal unit, aluminium  and > VAS 6790 - compact booster  .

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

3. 1.3  Drill out spotwelds -B-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

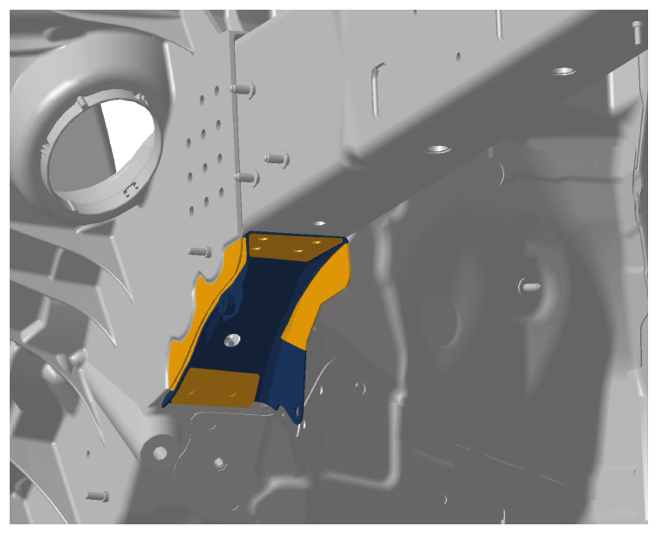

Bonding areas
