Removing Front Side Member

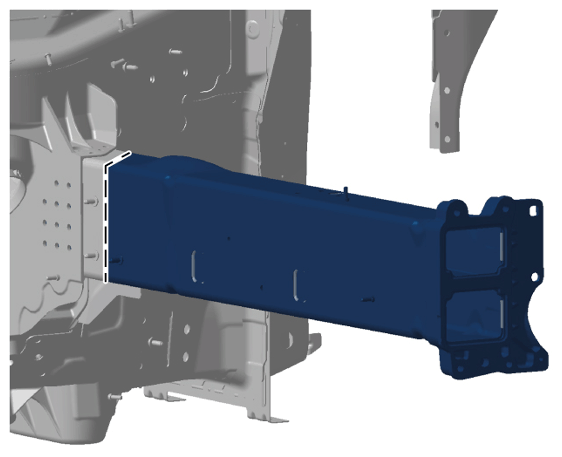

Roughly cut out front side member > Front side member .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front side member

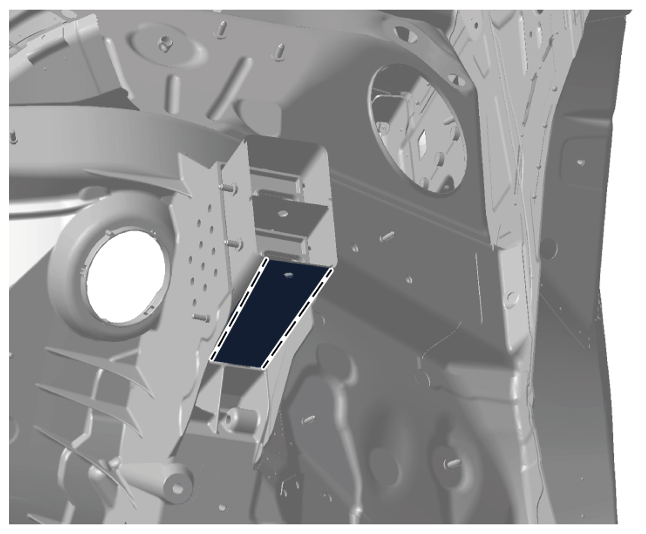

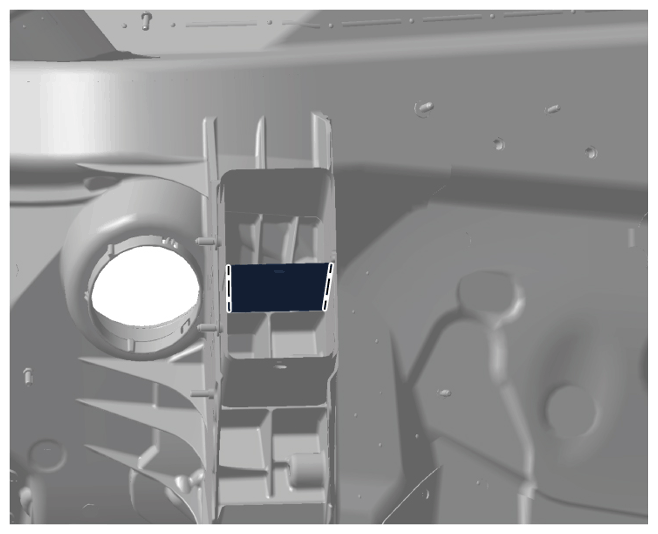

Cut out lower bulkhead > Lower bulkhead .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower bulkhead

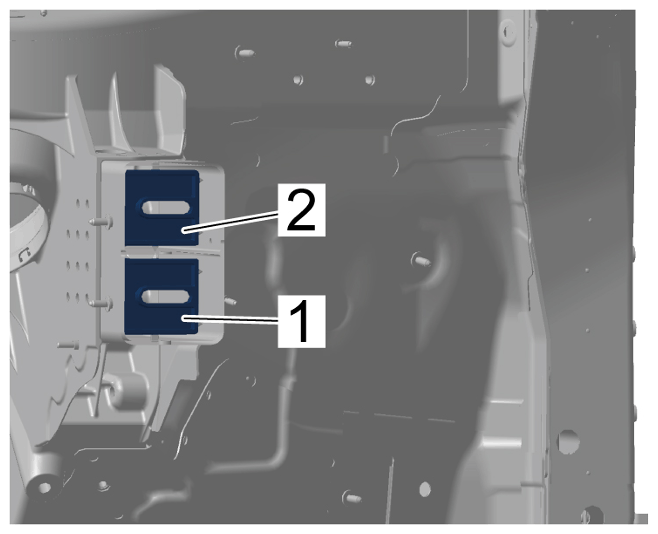

Knock out lower bulkhead part -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower bulkhead part
Cut out middle bulkhead > Middle bulkhead .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Middle bulkhead
Knock out upper bulkhead part -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper bulkhead part

Information

Do not unscrew screws on the sheetmetal panel side yet.

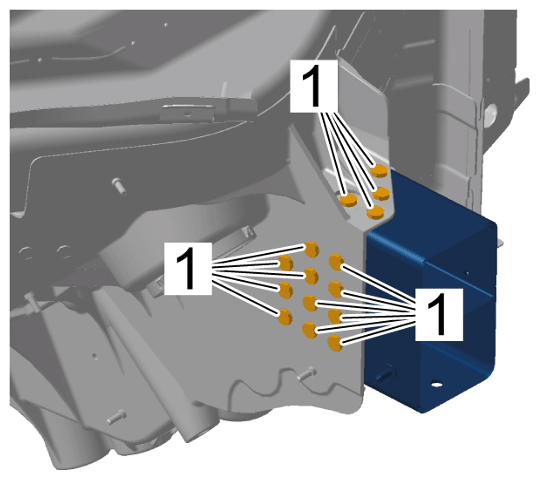

Unscrew self-tapping screws -1- on the cast component side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Self-tapping screws

Information

Heat cast aluminium components to max. > Temperature 120°C >.

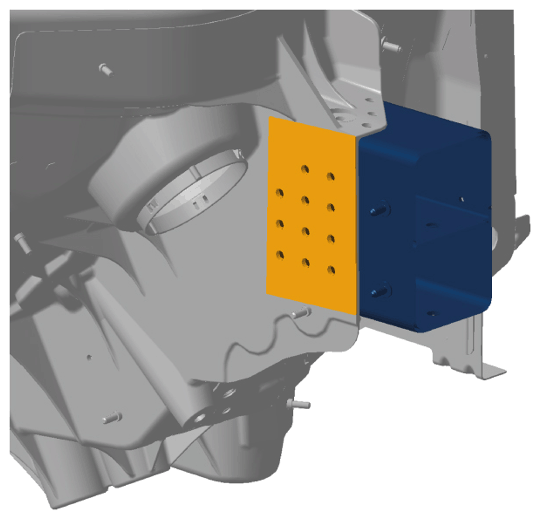

Heat connection points on the longitudinal member panel > Connection points on longitudinal member panel using > V.A.G 1416 - hot-air blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection points on longitudinal member panel

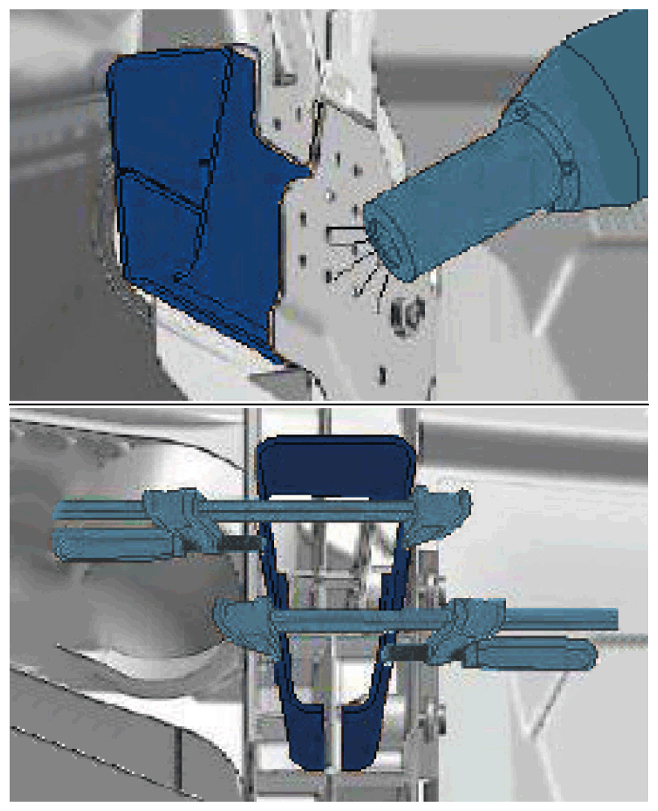

Press longitudinal member panel together using tensioning clamps > Longitudinal member panel .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Longitudinal member panel

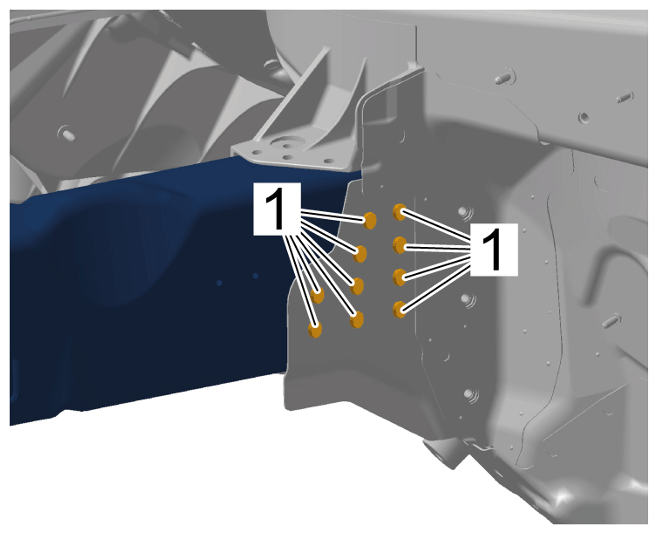

Unscrew self-tapping screws -1- on the sheetmetal panel side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Self-tapping screws

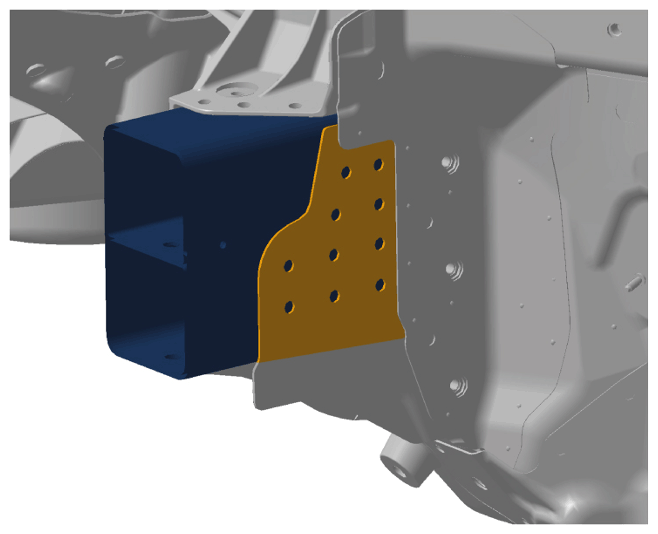

Heat bonding areas > Bonding areas . > V.A.G 1416 - Hot-air blower

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas
Remove remaining piece of front side member.
