Preparing Connection Areas Of The Body For Installing The Lower Cover Plate

  1. Prepare marked areas > Connection areas  for bonding and riveting.

    > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

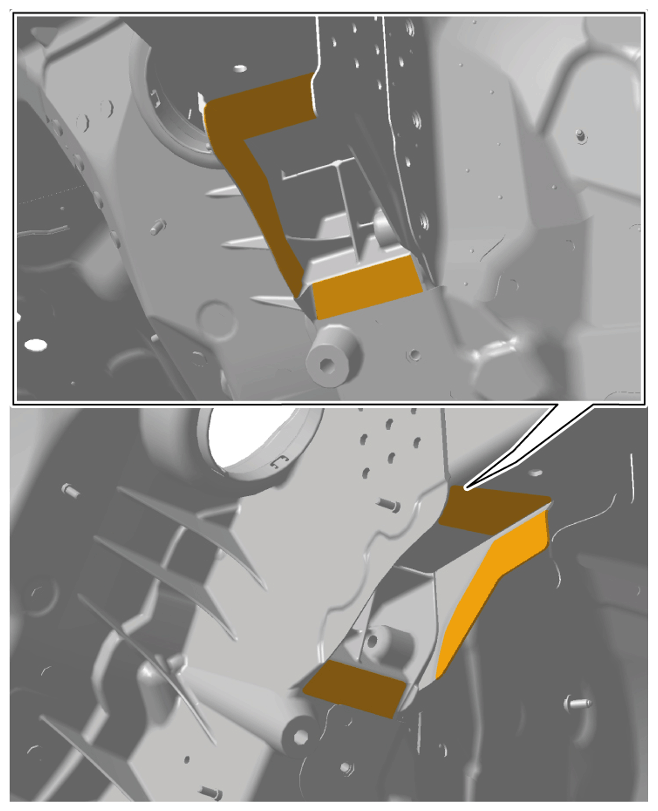

    G16137124Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connection areas
