Installing Lower Cover Plate

Information

• Before final assembly, make sure you fully understand all the w ork: steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Apply adhesive on joint area of body > Connection areas  .

   Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm  >

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

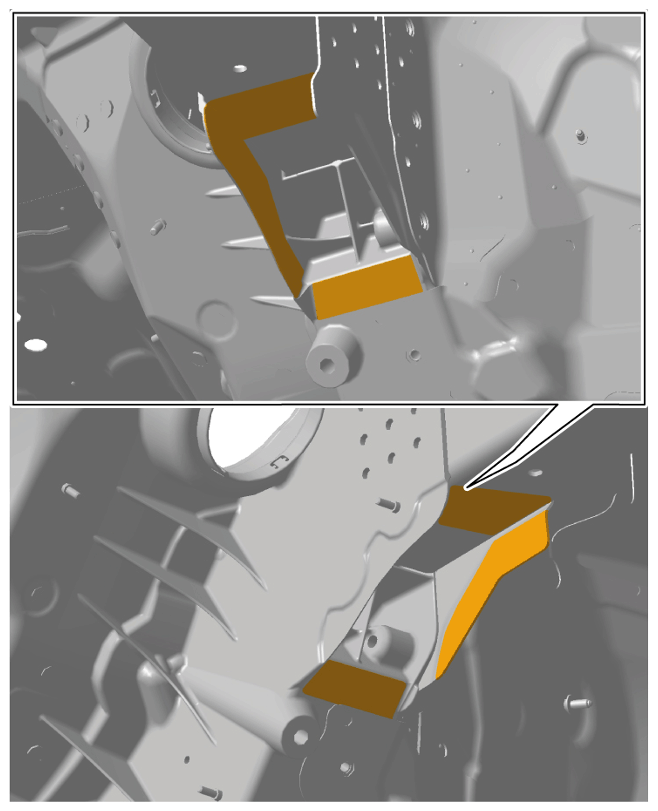

   Connection areas

2. Apply adhesive on lower cover plate > Bonding areas  .

   Apply adhesive evenly over the entire bonding surface. > Application depth 0.5 mm  >

   Also apply an adhesive bead of sealant all around the bonding surface. > Application depth 3 mm  >

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

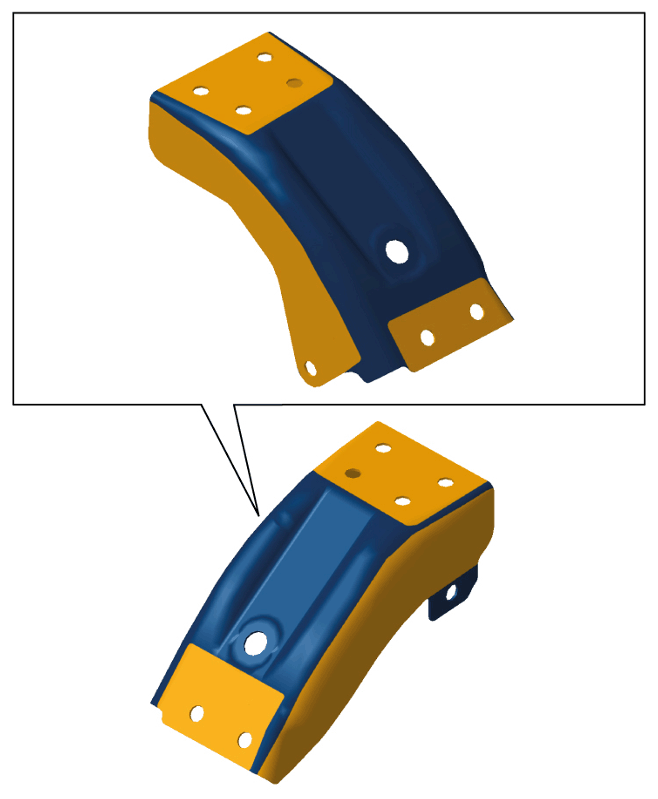

   Bonding areas

3. Rivet in lower cover plate > Rivet area  . > BLIND RIVET 999.190.229.01

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

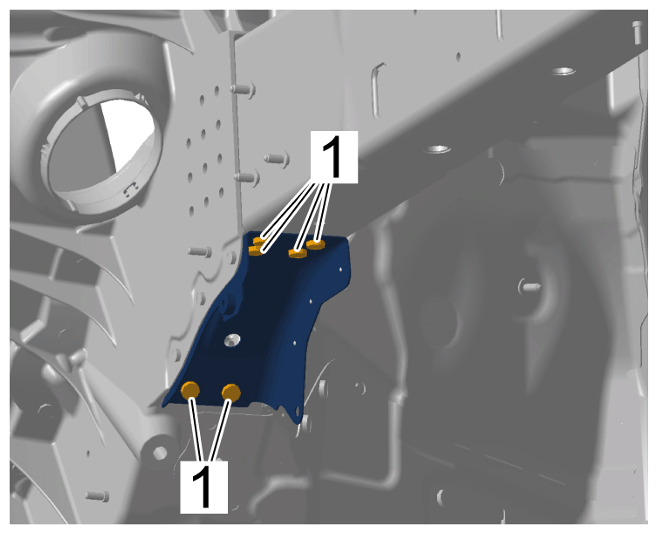

   Rivet area

4. Screw in self-tapping s;rews -1-  .

   > 5X00IN24 SETTING SELF-TAPPING SCREWS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

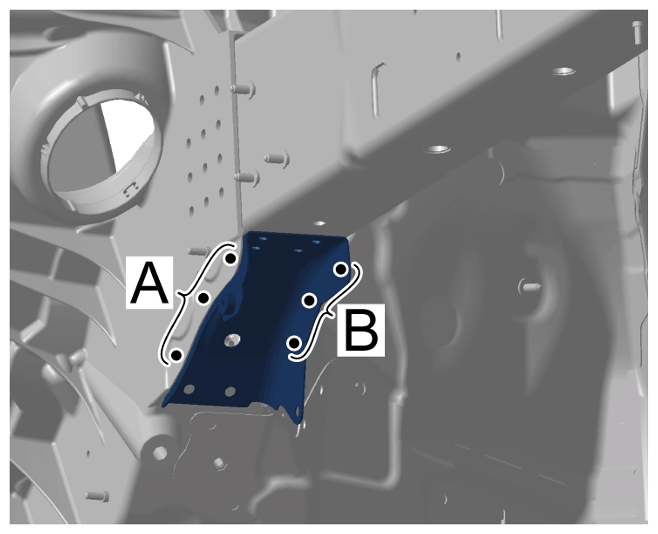

   Self-tapping screws
