Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...

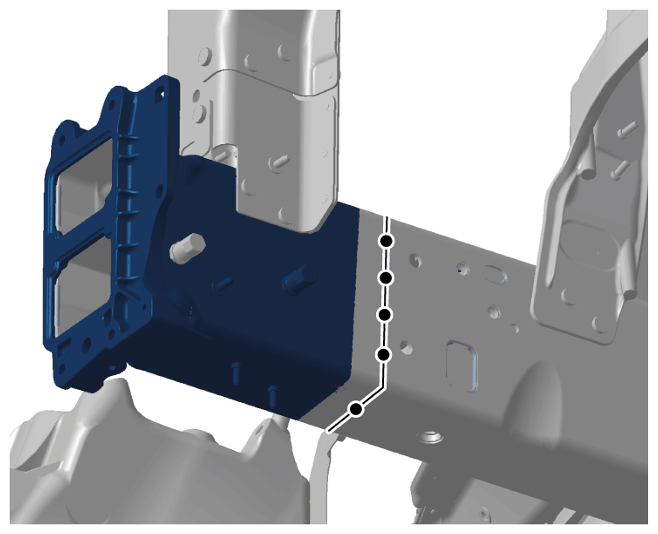

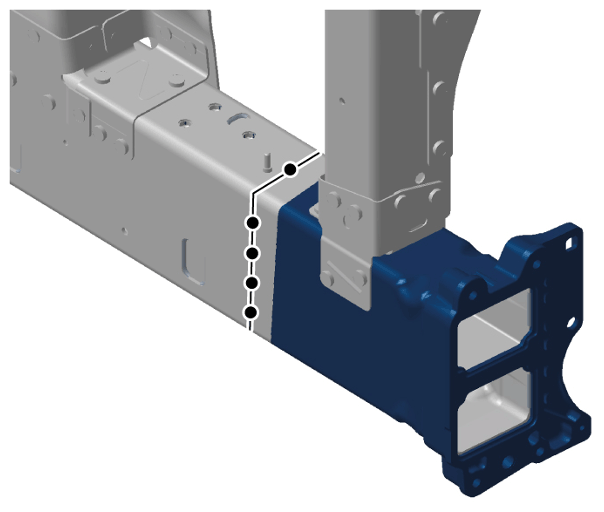

FDS screws in front side member (front section)		Tightening torque	24 Nm (18 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Inner screws Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Inner bores
Dimension A		Distance	166 mm
Dimension A		Distance	30 mm
Drill bit		Diameter	⁷ mm
Drill bit		Diameter	11 mm
Drill bit		Diameter	9 mm
Applying adhesive	Spread out evenly	Application depth	0.5 mm
Applying adhesive	Spread out evenly	Application depth	0.5 mm
Bead of adhesive		Application depth	3 mm
