Removing Front Side Member (Front Section)

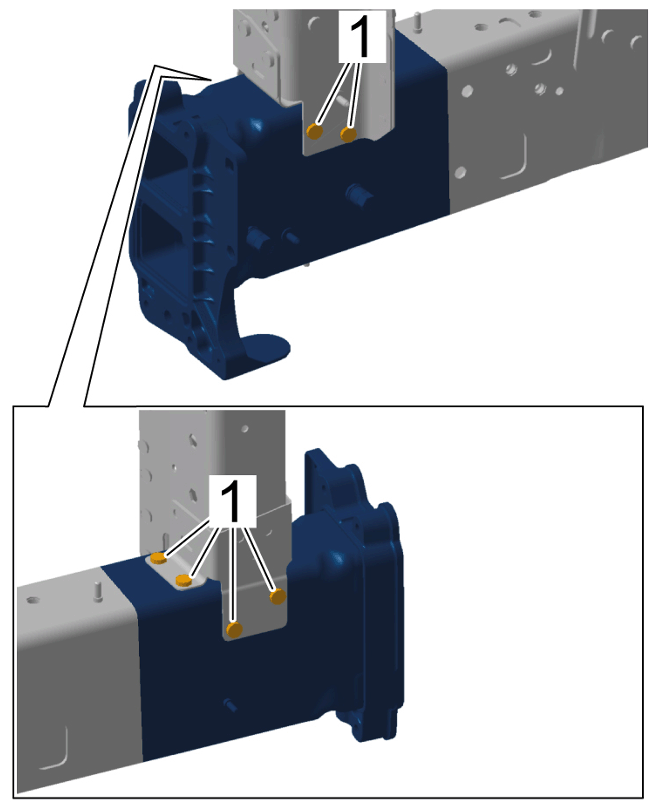

Unscrew self-tapping screws -1- .
> 5X00IN24 SETTING SELF-TAPPING SCREWS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

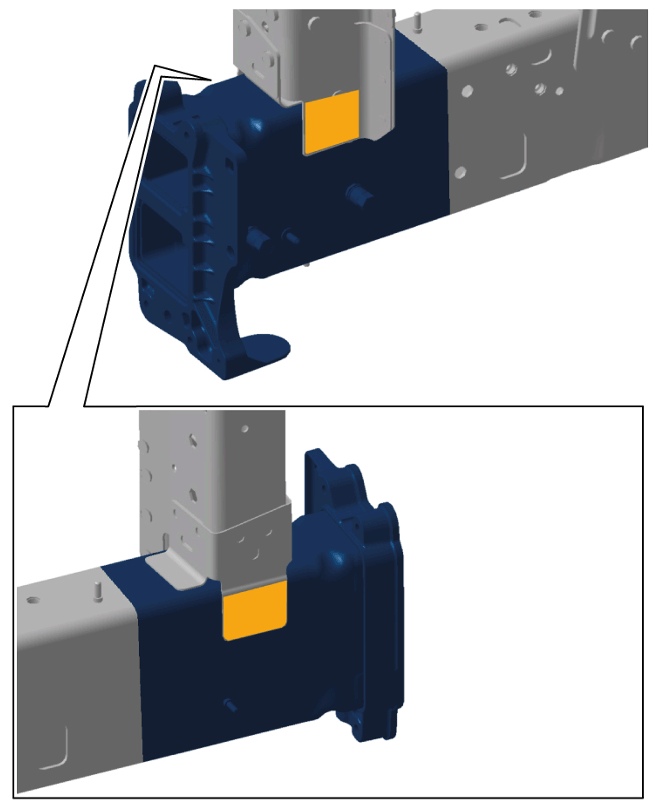

Heat bonding areas > Bonding areas using > V.A.G 1416 - hot-air blower.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas

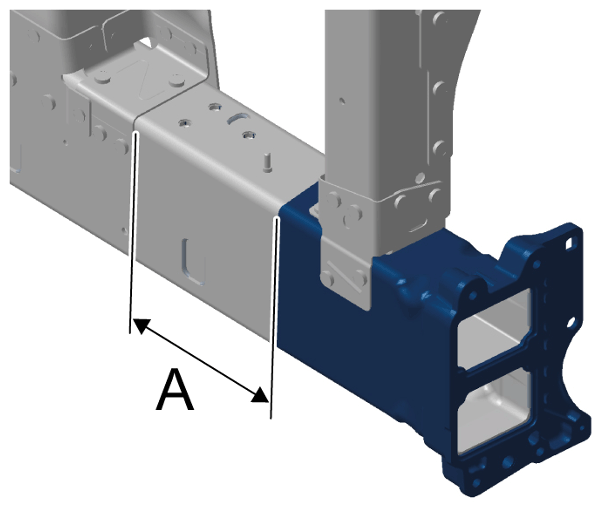

Cut front side member (front section) in accordance with the new part -Dimension A- .
> Distance 166 mm >

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front side member (front section)
