Removing Headlight Mounting

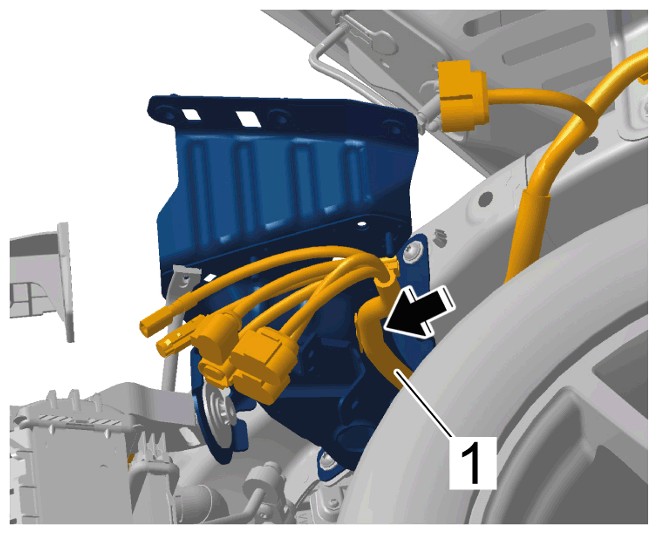

Unclip wire harness -1- (-Arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness

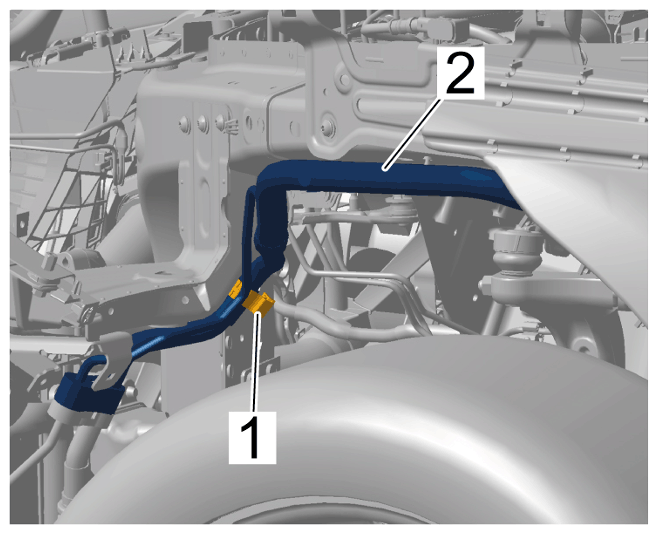

Open holder -1- and loosen refrigerant line -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Refrigerant line holder

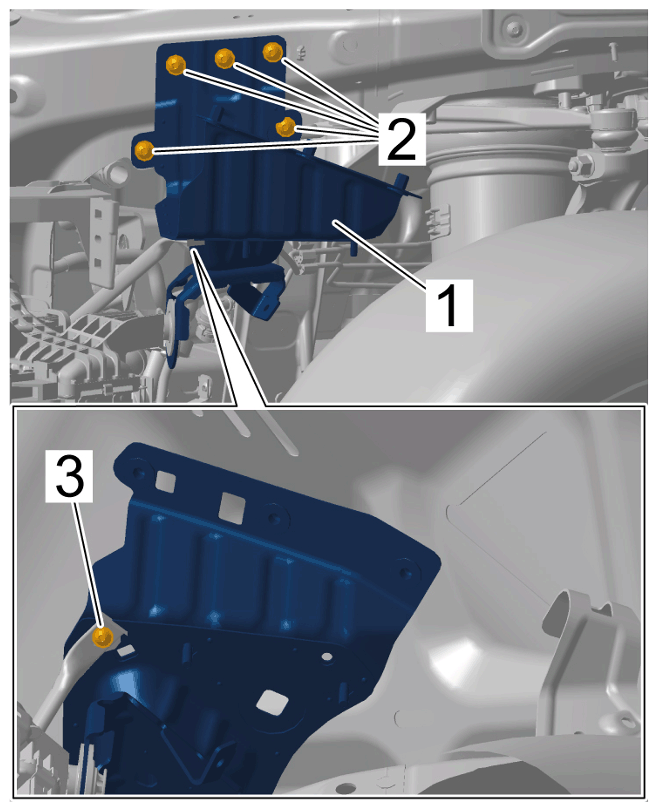

Unscrew fastening screws -2 and 3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

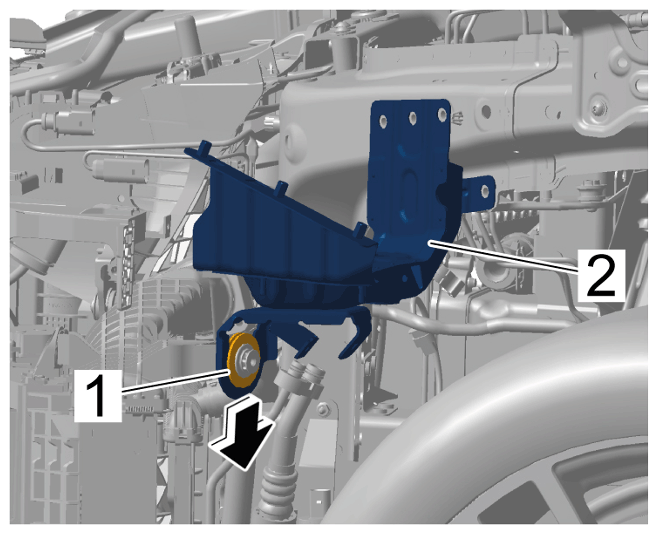

Guide support -2- out of the charge-air cooler holder -1- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Support
