Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...

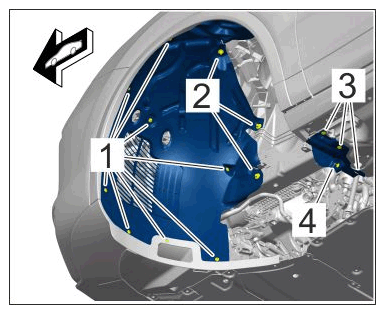

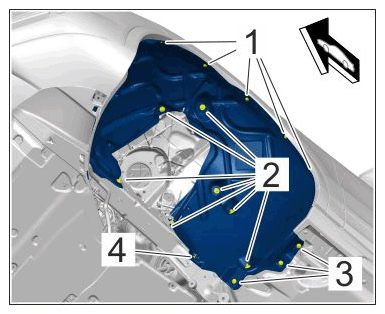

Screws securing front wheel housing liner to front end	Item 1 (screws)	Tightening torque	2.0 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Screws Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Screws
Nuts securing front wheel housing liner to front end	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Nuts Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Nuts
Screws securing front wheel housing liner to underbody	Item 3	Tightening torque	3.0 Nm (2.0 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Nuts Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Nuts
