Removing Front Wheel Housing Liner

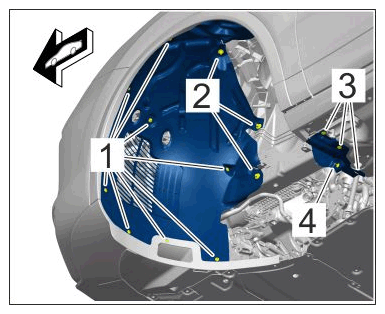

Unscrew fastening screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front fastening parts

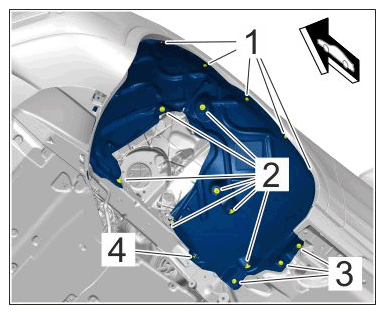

Unscrew fastening screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear fastening parts
Unscrew nuts -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front fastening parts
Unscrew nuts -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear fastening parts
Unscrew fastening screws -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front fastening parts
Unscrew fastening screws -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear fastening parts

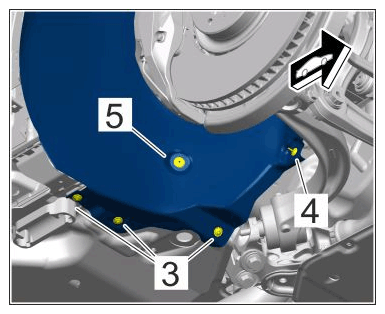

Remove expansion rivet -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front fastening parts
Remove fastening plug -5- (only on right-hand side of vehicle).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right fastening elements
Remove front wheel housing liner from wheel housing.
