Installing Front Wheel Housing Liner
- Installation is performed in reverse order to removal.

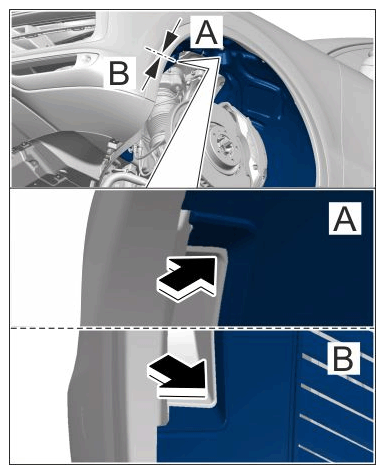

- Check that the air duct joint is fitted correctly.
Checking air duct joint
- Tighten fastening parts to the specified tightening torque.
Tighten screws securing front wheel housing liner to front end to > Tightening torque 2.0 (1.5 lb.) Nm .
Tighten nuts securing front wheel housing liner to front end to > Tightening torque 2.5 (1.75 lb.) Nm .
Tighten screws securing front wheel housing liner to underbody to > Tightening torque 3.0 (2.0 lb.) Nm .
