Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...

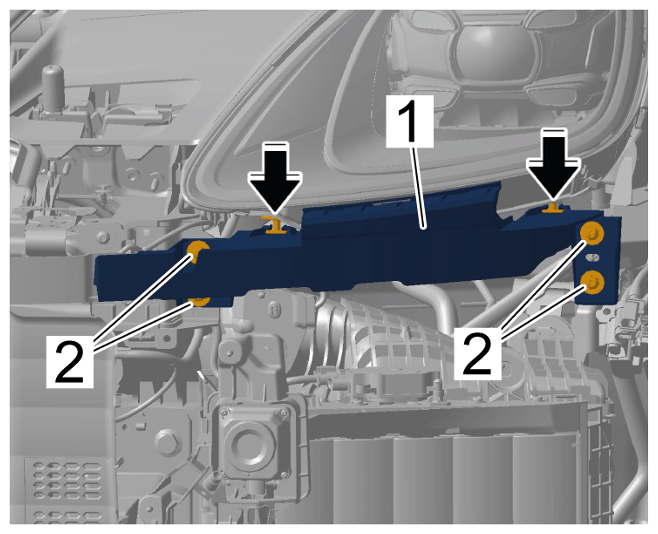

Fastening screws for headlight mounting	Item 2	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Headlight mounting
Nuts securing retaining strip to wing	Item 1	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

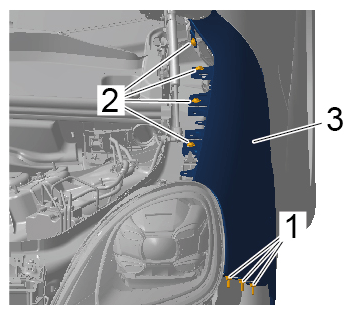

Front wing to lower front-end	Item 1 and 2	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

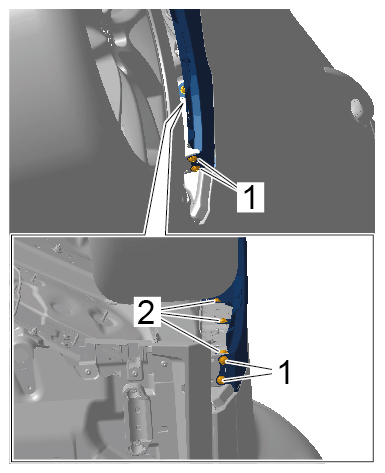

Front wing to upper front-end	Item 1 and 2	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

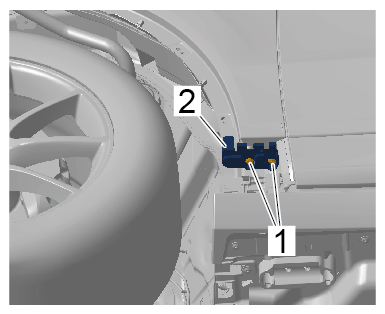

Bracket to wing	Item 1	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

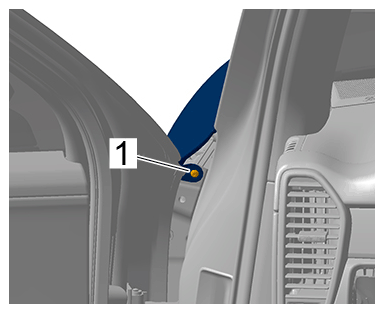

Front wing - rear fastening screw, top	Item 1	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper fastening screw
