Removing Front Wing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

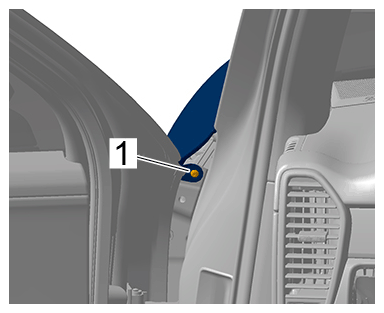

Upper fastening screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

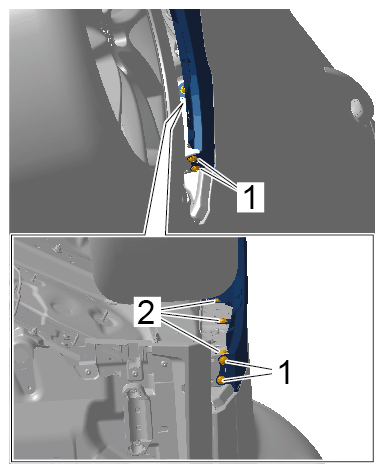

Fastening screws

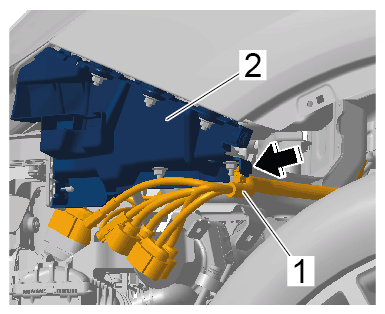

1. 3.1  Unclip wire harness -1-  from guide -2-  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness

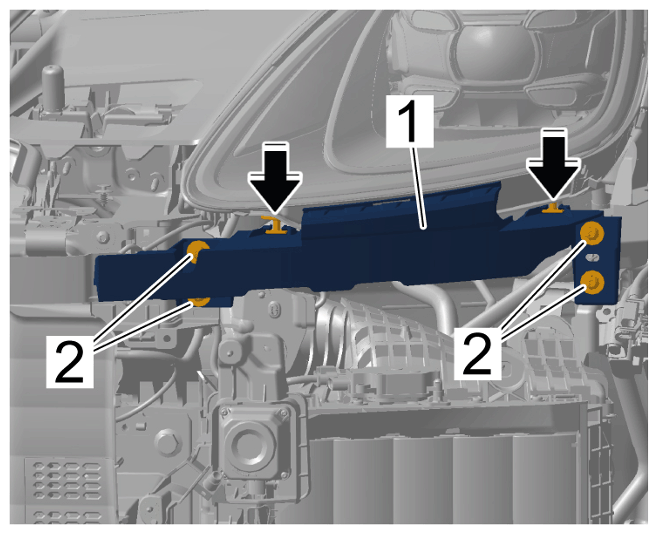

2. 3.2  Unscrew fastening screws -2-  and carefully remove headlight guide -1-  . Check the guide pins -Arrows-  while doing this.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Headlight guide

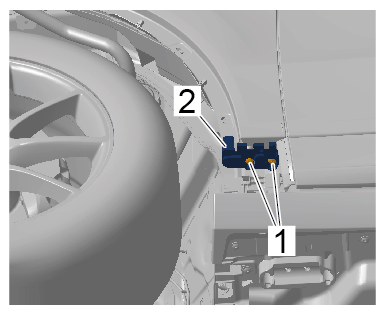

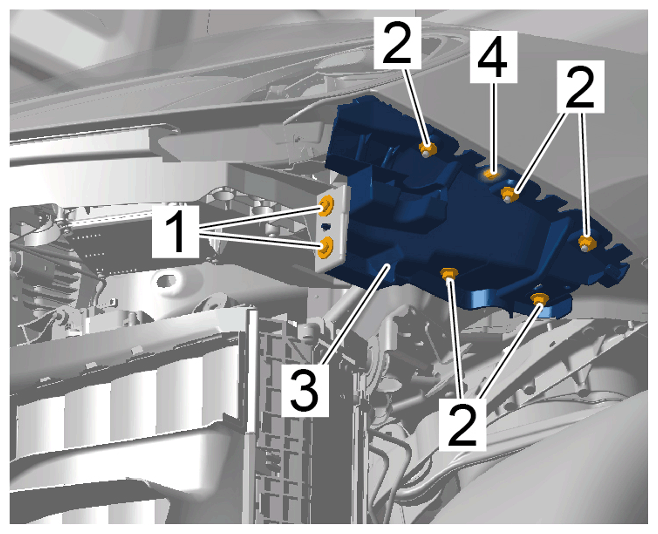

3. 3.3  Unscrew fastening nuts -2-  and unclip guide -3-  (-4-  ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

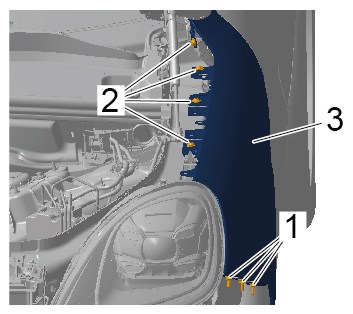

Front wing
