Preliminary Work

  1. Remove front wheel housing liner.

    > 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER

  2. Remove front trim panel.

    > 700219 Removing and installing front trim panel

  3. Remove front apron.

    > 631519 Removing and installing front apron

  4. Remove wing trim panel.

    > 661819 Removing and installing wing trim panel

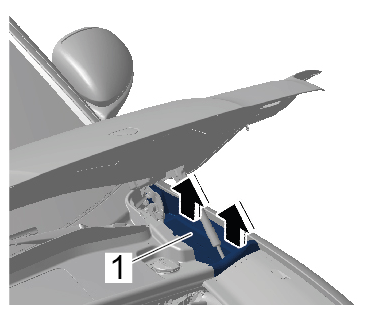

  5. Unclip cover -1-  from wing -Arrows-  .
    G16136892Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover on wing

    Only for left wing

  6. Remove windscreen-washer reservoir.

    > 926019 Removing and installing windscreen-washer reservoir
