Installing Front Wing

Information

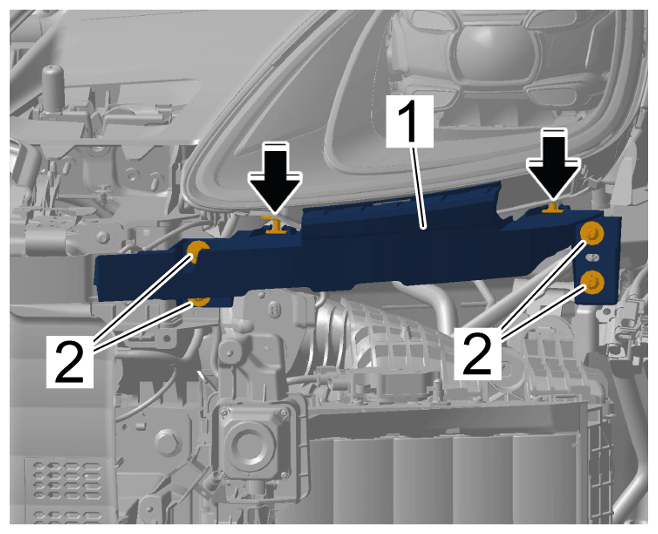

When installing the headlight guide -1-  , make sure that the guide pins -Arrows-  are positioned perfectly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Headlight guide

1. Installation is performed in reverse order. Pay particular attention to the following:

   Tighten the top fastening screw to > Tightening torque 2 (1.5 lb.) Nm  .

   Tighten fastening screws on mounting to > Tightening torque 2 (1.5 lb.) Nm  .

   Tighten fastening screws on wing to > Tightening torque 10 (7.5 lb.) Nm  .

   Tighten fastening screws on wing to > Tightening torque 10 (7.5 lb.) Nm  .

   Tighten fastening nuts on the guide to > Tightening torque 4 (3 lb.) Nm  .

   Tighten fastening screws at the headlight mounting point to > Tightening torque 6 (4.5 lb.) Nm  .
