Technical Values
TIGHTENING TORQUE SPECIFICATIONS
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

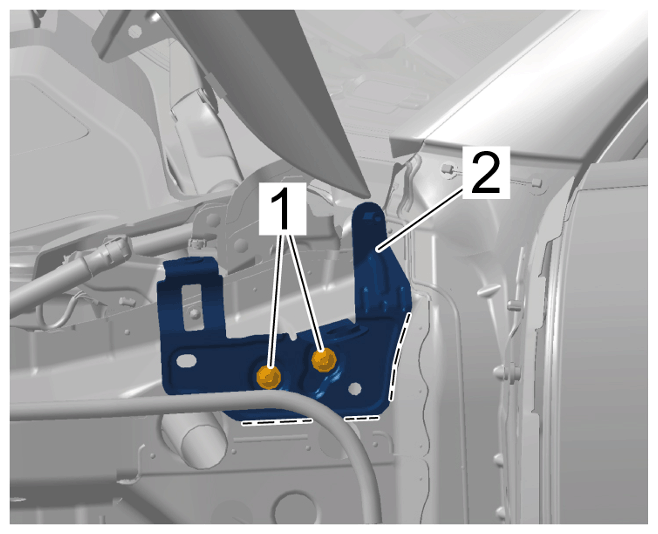

| Front wing connection panel to upper front-end | Item 1 | Tightening torque | 10 Nm (7.5 ftlb.) | ||
|
Screws |
|||||

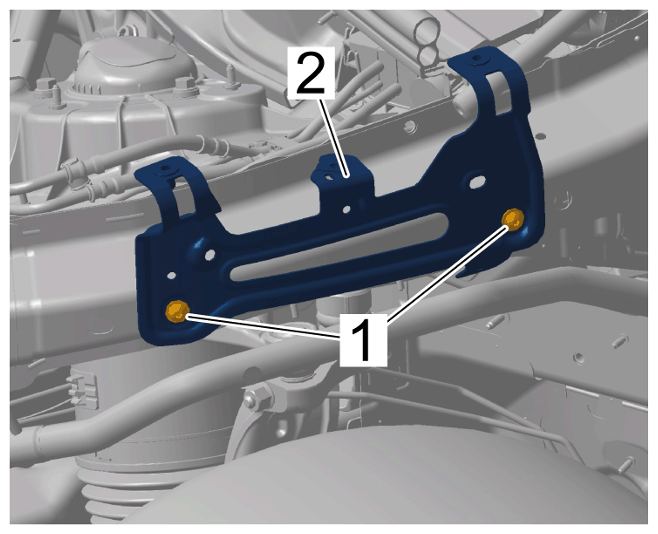

| Rear wing connection panel to upper front-end | Item 1 | Tightening torque | 10 Nm (7.5 ftlb.) | ||
|
Screws |
|||||
| Sensor for body to body (front) | Internal hexagon roundhead bolt, M6 x 25 | Tightening torque | 8 Nm (6 ftlb.) | ||
