Removing Rear Wing Connection Panel

  1. Mark installation position of the rear wing connection panel -2-  .
    G16136875Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installation position of wing connection panel

  2. Unscrew and remove screws -1-  .

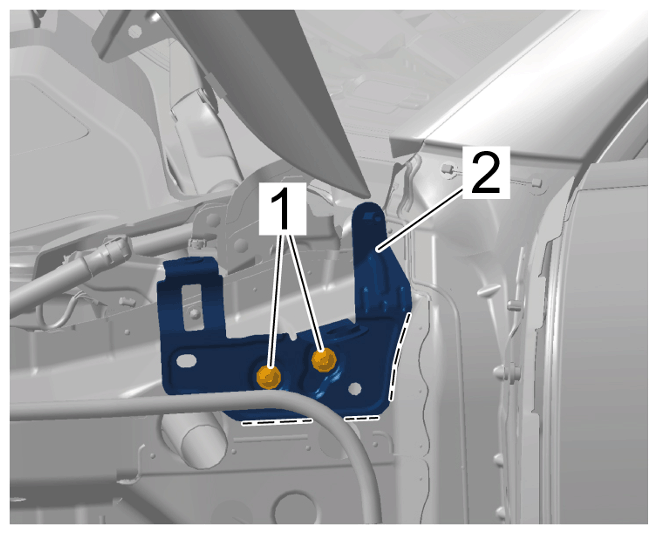

    G16136876Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  3. Remove rear wing connection panel -2-  .
    G16136877Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear wing connection panel
