Removing Front Wing Connection Panel

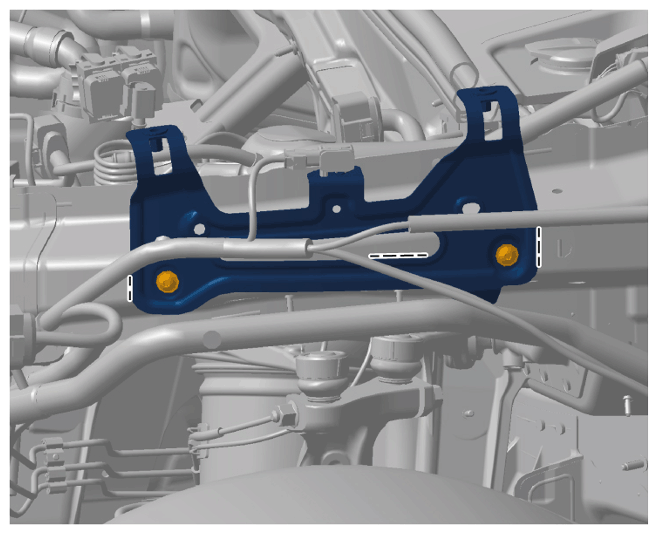

Mark installation position of the front wing connection panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of wing connection panel

Information
- Do not release and disconnect electric plug connection.
Unscrew screw -1- and move pressure sensor -2- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure sensor
Unclip electric wire harness -1 (-2- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness

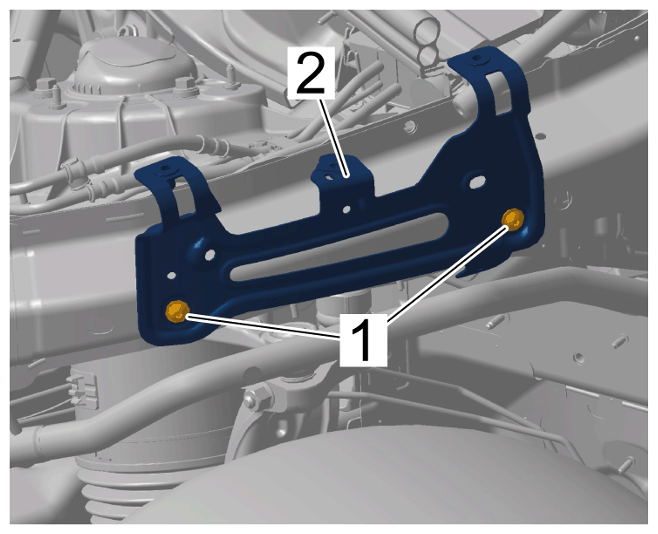

Unscrew and remove screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Remove front wing connection panel -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wing connection panel
