Removing Intermediate Piece

Information

The pictures shown in this document may differ from the original.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

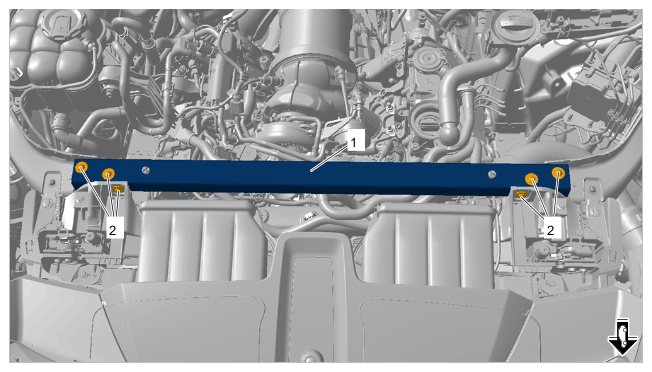

1. Remove intermediate piece -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Intermediate piece

   1. 1.1  Unscrew and remove screws -2-  .
   2. 1.2  Guide out intermediate piece -1-  .
