Removing Filler Plate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

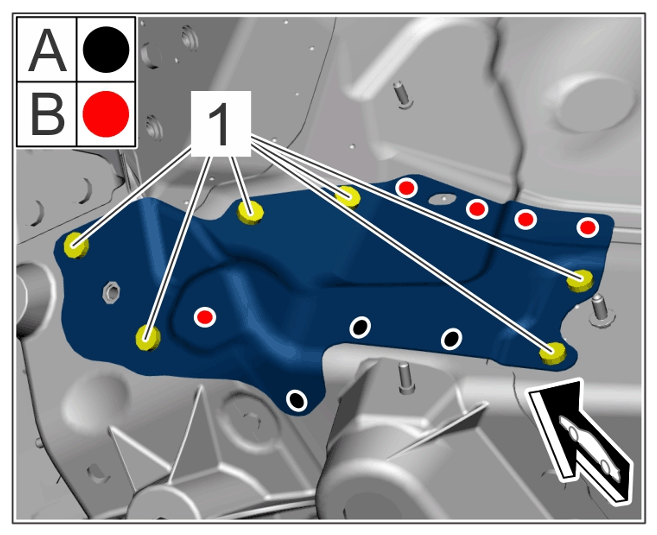

Filler plate

1. 1.1  Unscrew self-tapping screws -1-  .
2. 1.2  Remove punch rivets -A-  using > VAS 852 001 - body dent removal unit, aluminium  and > VAS 6790 - compact booster  .
3. 1.3  Grind down punch rivets -B-  in a sheet metal position using a belt grinder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

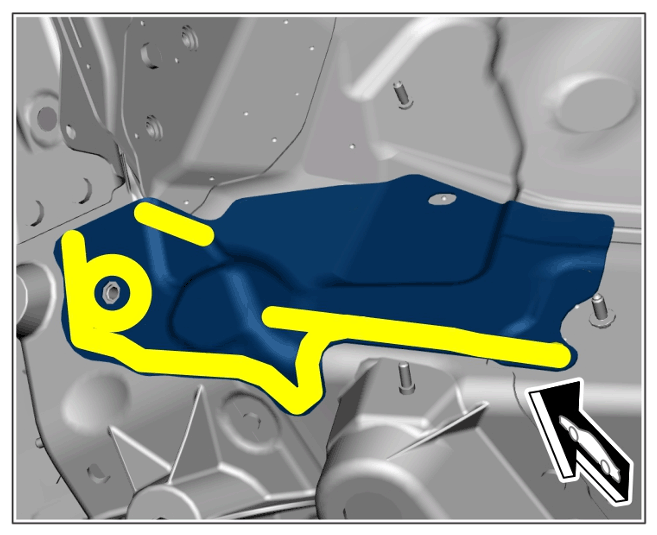

Bonding areas
