Preparing Filler Plate

Position filler plate on the body and secure it.
Prepare joints.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

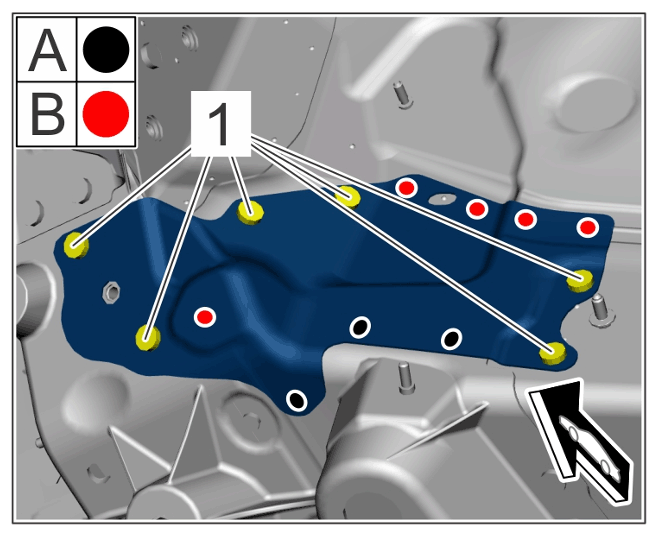

Filier plate
1. 2.1 Set pilot bore for self-tapping screws at points -1- . > Diameter 3.5 mm
  > 5X00IN24 SETTING SELF-TAPPING SCREWS
2. 2.2 Drill through holes for rivets at points -A- and -B- . > Diameter 6.6 mm
Remove filler plate.
Prepare marked areas for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

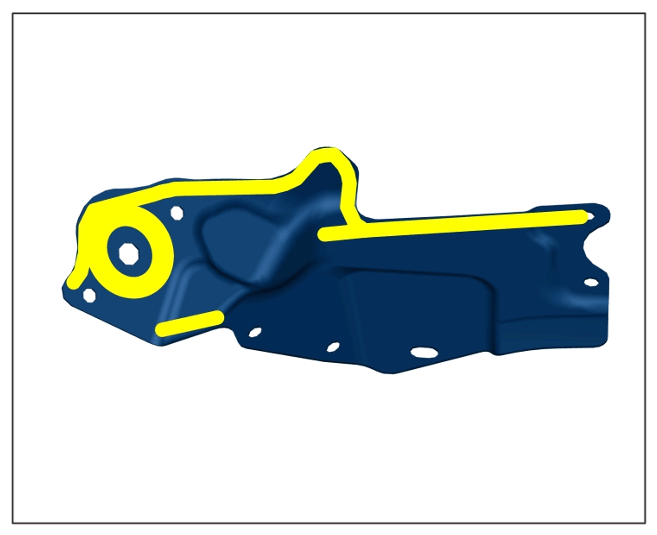

Bonding areas
