Installing Filler Plate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

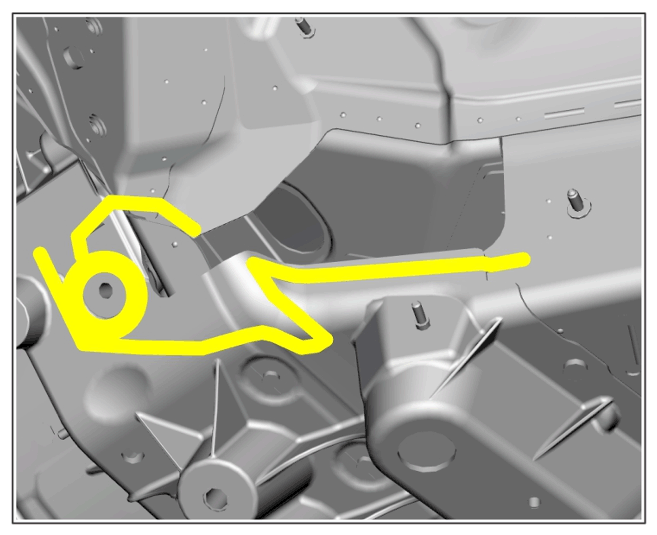

Bonding areas

1. 1.1  Apply adhesive to the marked areas and spread it.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

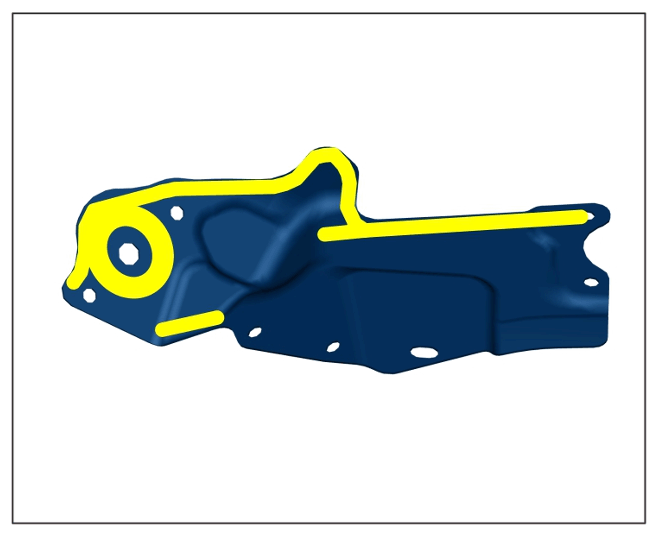

Bonding areas

1. 2.1  Apply adhesive to the surface of the marked area.

   > Application depth 0.5 mm

2. 2.2  Also apply a bead of adhesive all around the bonding surfaces.

   > Application depth 3 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

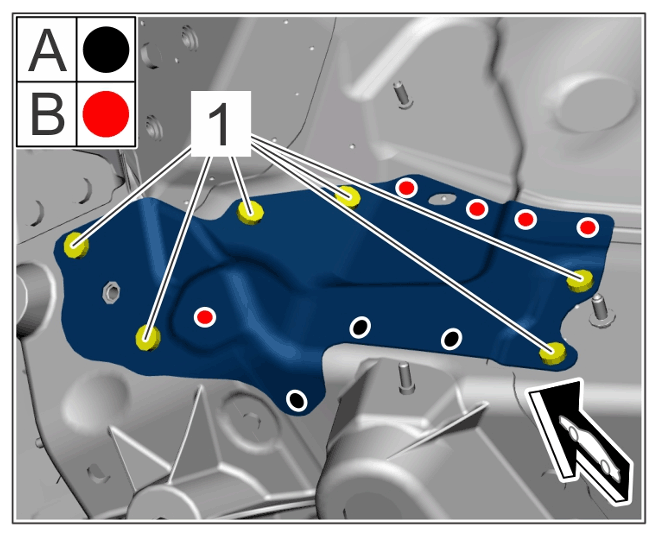

Filler plate

1. 4.1  Tighten self-tapping screws -1-  .
2. 4.2  At positions -A-  > BLIND RIVET 999.190.227.01  .
3. 4.3  At positions > BLIND RIVET 999.190.227.01  .
