Loosening Longitudinal Member For Wheel Housing Upper Section (Inner Part)

  1. Loosen longitudinal member for wheel housing upper section (inner part).
  2. Remove punch rivets using > VAS 852 001 - body dent removal system, aluminium  and > VAS 6790 - compact booster  .

    > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

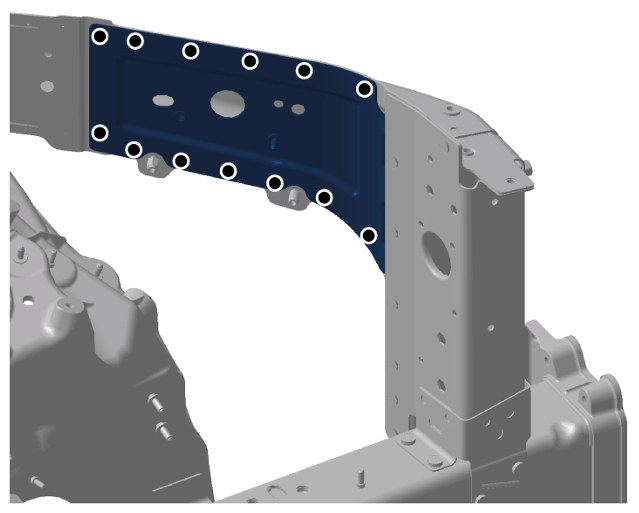

    G16136699Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rivet area

  3. Heat bonding area. > V.A.G 1416 - Hot-air blower

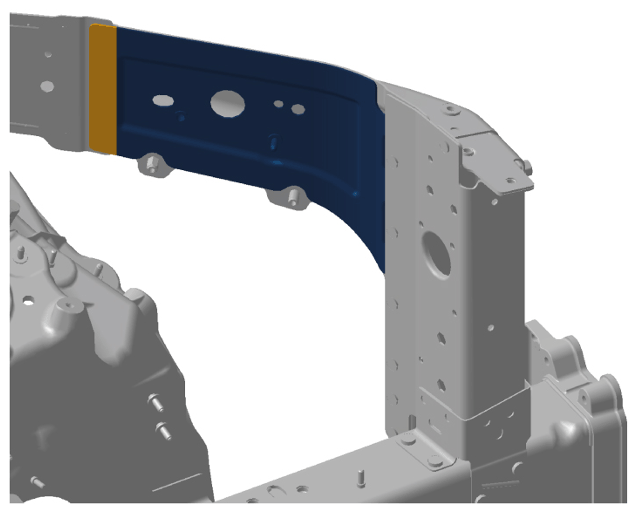

    G16136700Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding area
