Technical Values

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...

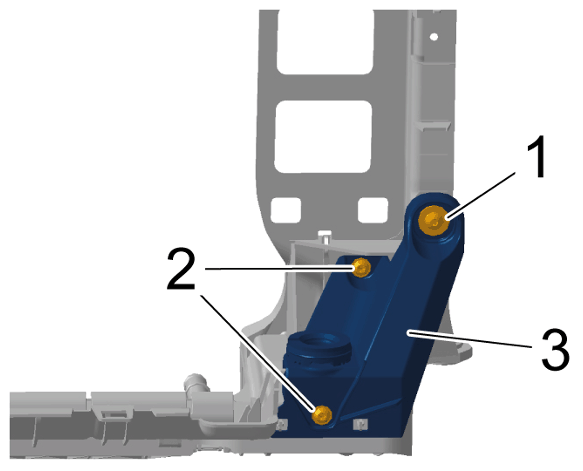

Screw securing radiator holder to lock support panel	Item 1	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for radiator holder
Lateral screws securing radiator holder to lock support panel	Item 2	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for radiator holder
Screws securing lower cooling water line to lock support panel	Item 1	Tightening torque	8 Nm (5.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bolts

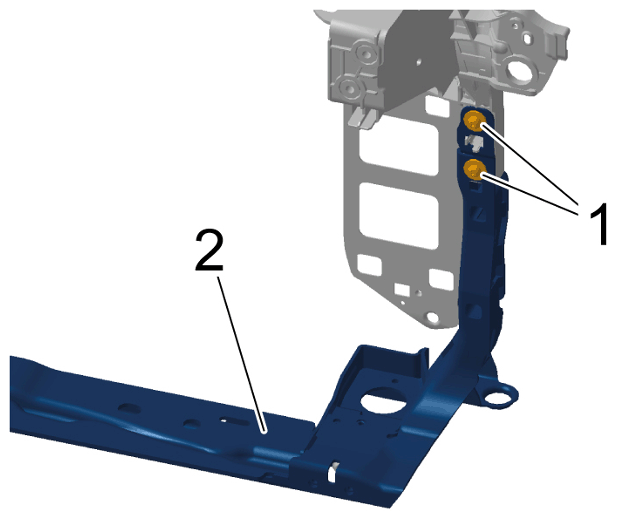

Screws securing lock carrier lower part to lock carrier upper part (off-road)	Item 1	Tightening torque	9 Nm (6.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for lower part of lock carrier
