Disassembling Lock Carrier

Remove front airbag sensors.
> 695119 Removing and installing airbag sensor
Remove front lock lower parts.
> WM, 551719 REMOVING AND INSTALLING FRONT LOCK LOWER PART
Remove horns.
> 905019 Removing and installing horn
Remove radiator.
> 197019 Removing and installing radiator

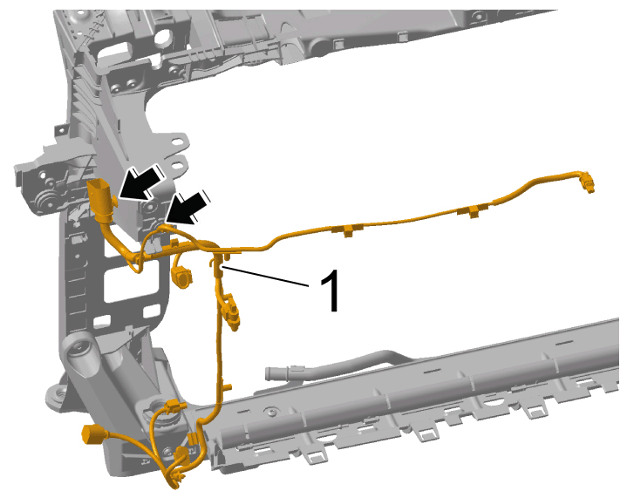

Unclip electric line -1- (-Arrows- ) and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line

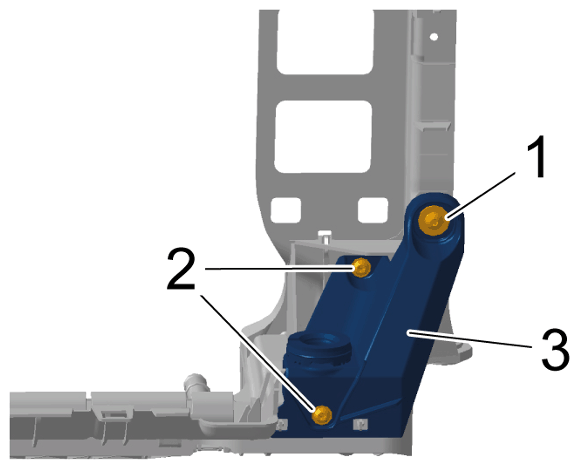

Unscrew screws -1 and 2- and remove radiator mounting -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Radiator mounting

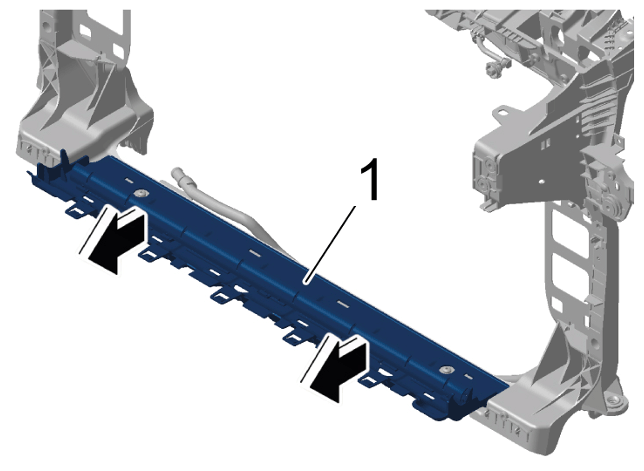

Unclip air guide -1- (-Arrows- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide

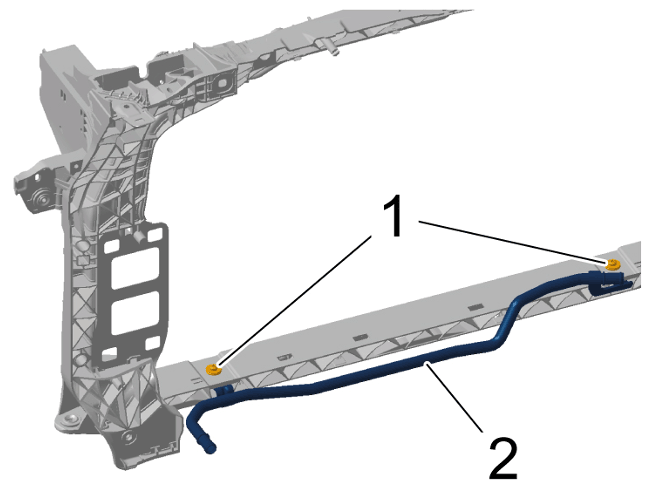

Unscrew screws -1- and remove coolant line -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

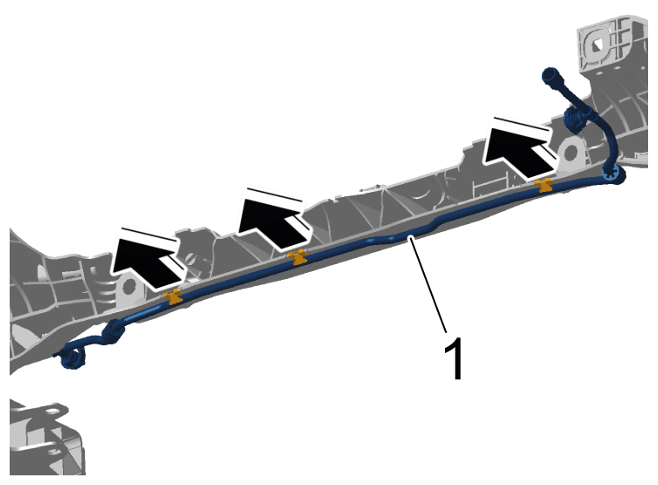

Unclip coolant line -1- (-Arrows- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant line

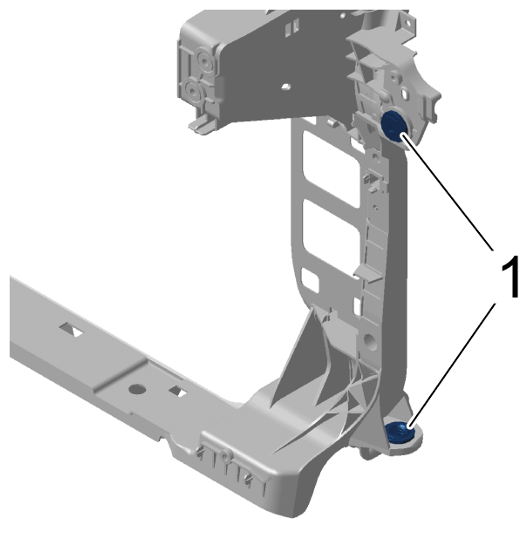

Pull out rubber buffer -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber buffer

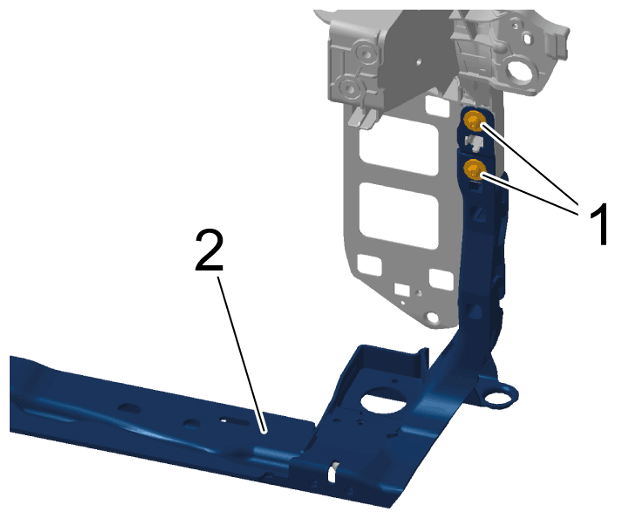

For split lock carriers (off-road):
Unscrew screws -1- and remove lower part of lock carrier -2- from upper part of lock carrier.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock carrier
