Technical Values
TIGHTENING TORQUE SPECIFICATIONS
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

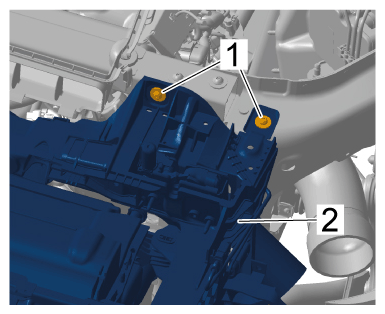

| Screws securing lock support panel at the top to front end | Item 1 | Tightening torque | 8 Nm (5.9 ftlb.) | ||
|
Bolts |
|||||

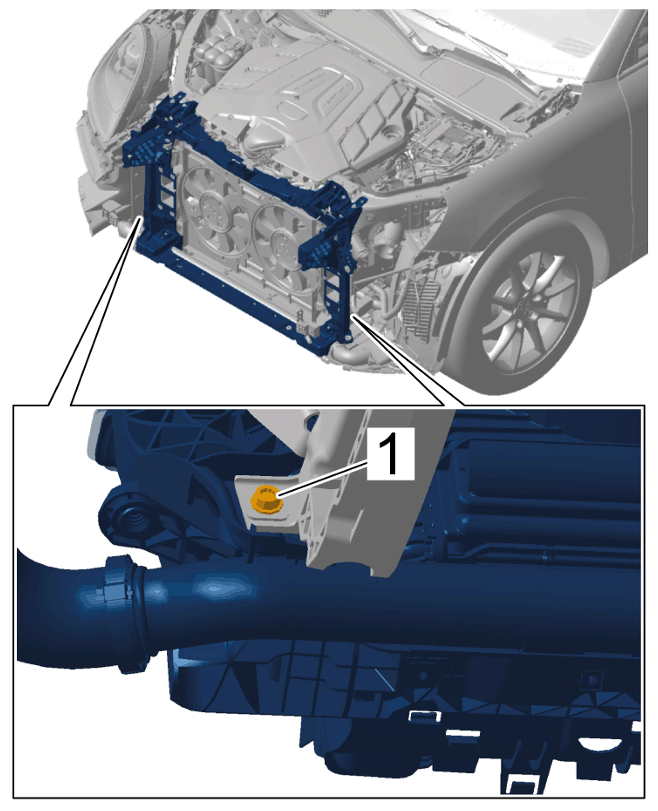

| Screws securing lower lock support panel to longitudinal member | Item 1 | Tightening torque | 23 Nm (17 ftlb.) | ||
|
Bolts |
|||||
| Screw securing refrigerant line to condenser | Tightening torque | 9 Nm (6.5 ftlb.) | |||
