Removing Lock Carrier

WARNING: Refrigerant

Danger of freezing
→ Avoid contact with refrigerant.

→ Wear personal protective gear.

→ Observe the safety regulations for working on air-conditioned vehicles and handling refrigerant.

→ Observe the safety regulations for extraction and filling systems.

→ Observe the instructions for repairing air-conditioning systems and storing spare parts.

WARNING: Hot fluid

Danger of scalding
→ Avoid contact with hot fluid.

→ Wear personal protective gear.

Information

After disconnecting hoses, close off all openings immediately using commercially available rubber stoppers.

When fitting parts, do not remove stoppers until shortly before installation.

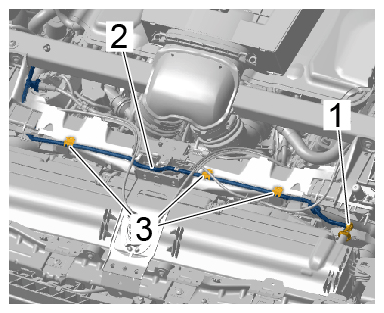

Release lock on coolant overflow line -1- and pull it off the radiator.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant overflow line
Unclip coolant overflow line -2- from retaining clips -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant overflow line

Information

After disconnecting hoses, close off all openings immediately using commercially available rubber stoppers.

When fitting parts, do not remove stoppers until shortly before installation.

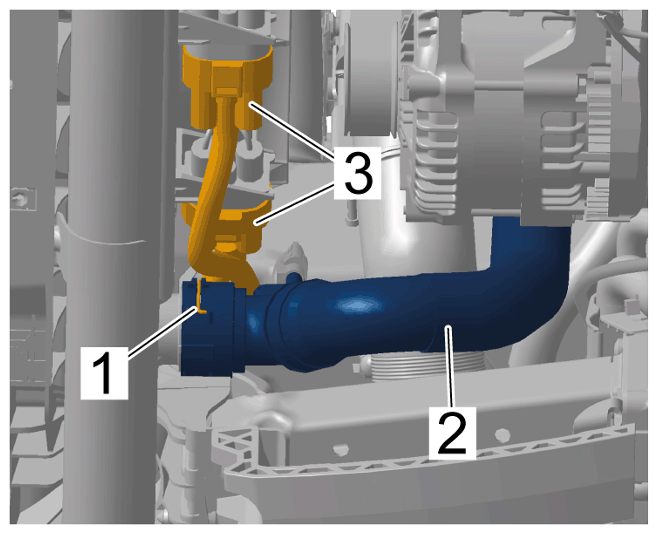

Release safety clip on coolant line -1- and pull coolant line -2- off the radiator.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hose
Release and unplug electric plug connections -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

Information

When removing the refrigerant lines:

Close off all refrigerant lines and connections using suitable stoppers.

Check O-rings on the refrigerant lines for damage and replace them if necessary.

Information

When installing the refrigerant lines:

Wet the O-rings of the refrigerant lines with refrigerant oil.

Do not remove the stoppers for the refrigerant lines and connections until shortly before installation.

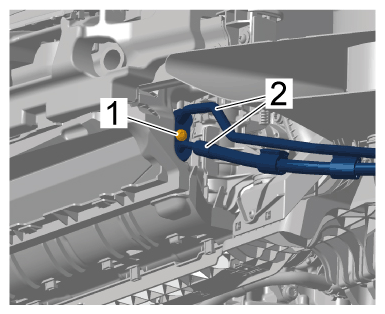

Unscrew fastening screw -1- and pull off refrigerant lines -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Refrigerant lines

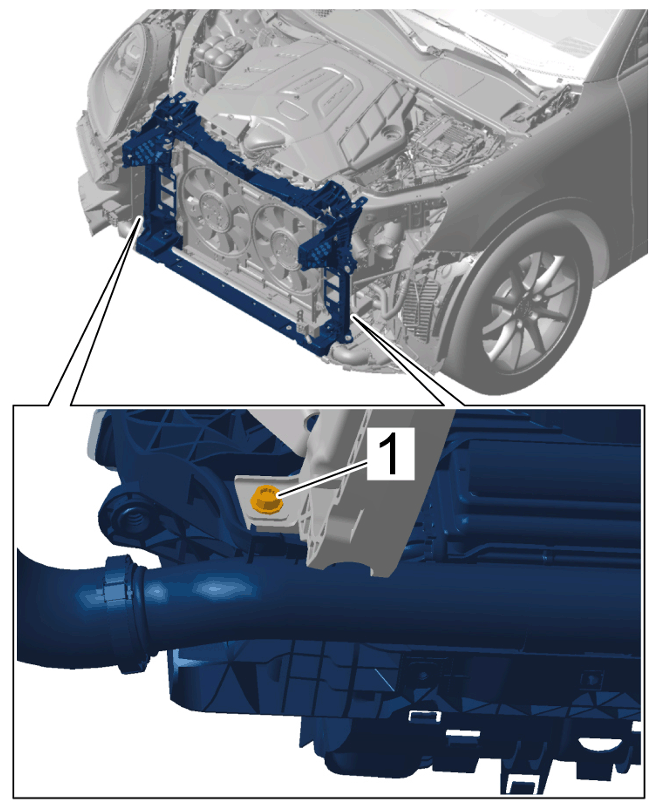

Unscrew fastening screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

Information

After disconnecting hoses, close off all openings immediately using commercially available rubber stoppers.

When fitting parts, do not remove stoppers until shortly before installation.

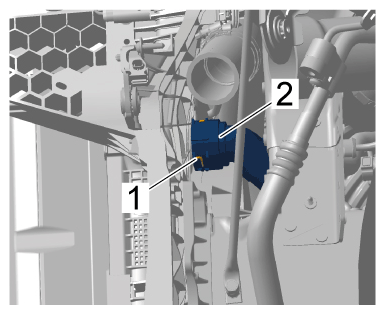

Release safety clip on coolant line -1- and pull coolant line -2- off the radiator.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant line

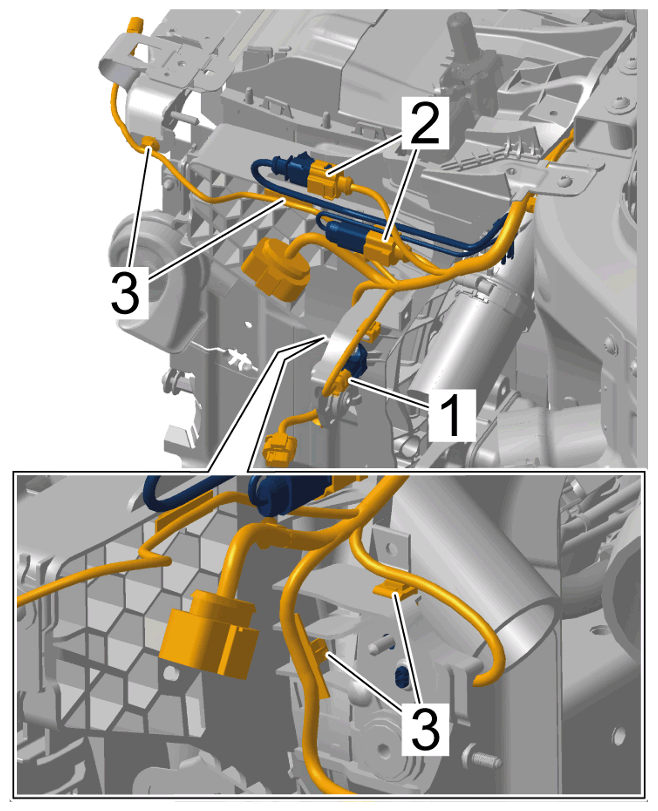

Release and disconnect electric plug connections at the left -1 and 2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections at the left
Unclip line bracket -3- and move electric wire harness towards the centre of the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line bracket

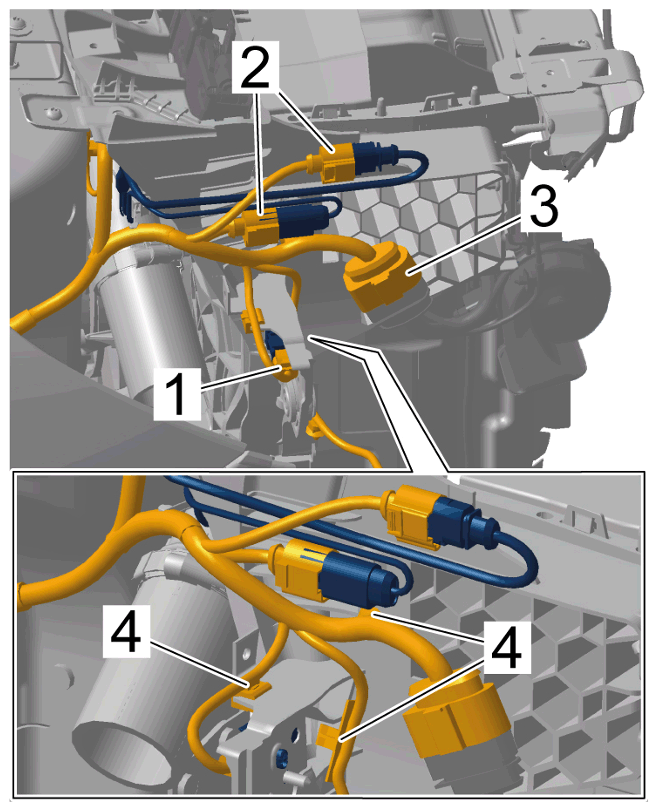

Release and disconnect electric plug connections at the right -1, 2 and 3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections on the right
Unclip line bracket -4- and move electric wire harness towards the centre of the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line bracket
Remove operating cable for front lid lock.
> WM, 551419 REMOVING AND INSTALLING OPERATING CABLE FOR FRONT LID LOCK

Information

The help of another person is required.

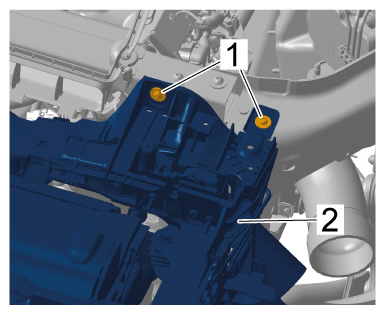

Unscrew fastening screws -1- and remove lock carrier -2-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
